THERM-A-GAP PAD 60 Thermally Conductive Gap Filler Pads THERM-A-GAP PAD 60 Thermally Conductive Gap Filler Pads THERM-A-GAP PAD 60 Thermally Conductive Gap Filler Pads

THERM-A-GAP PAD 60 Thermally Conductive Gap Filler Pads

Where to Buy

Parker Chomerics THERM-A-GAP™ PAD 60 Thermally Conductive Gap Filler Pads provide a low hardness (40 Shore 00) solution with 6.0 W/m-K of thermal conductivity.

Technical Specifications

  • Color: Green
  • Specific Gravity: 3.3
  • Durometer: 40 Shore 00, Softest
  • Deflection at Pressure: 38 % @ 50 psi (345 kPa)
  • Thermal Impedance: 0.24 °C-cm2/W
  • Heat Capacity: 1 J/g-K
  • Coefficient of Thermal Expansion: 150 ppm/K
  • Dielectric Strength: 127 VAC/mil, 5.0 kVAC/mm
  • Volume Resistivity: 10^13 ohm-cm
  • Operating Temperature: -67 to 392 °F, -55 to 200 °C
  • Dielectric Constant: 9.3 @ 1 MHZ
  • Dissipation Factor: 0.006 @ 1 MHZ
  • Outgassing Total Mass Loss: 0.05 % TML (0.01% CVCM)
  • Shelf Life: 18 Months
  • Flammability Rating: UL 94 V-0
  • Specifications Met: RoHS
  • Product Type: Thermal Gap Pad
  • Thermal Conductivity: 6 W/m-K
  • Storage Temperature: 50 to 90 °F @ 50% RH, 10 to 32 °C @ 50% RH
Safety Warning

Full Product Description

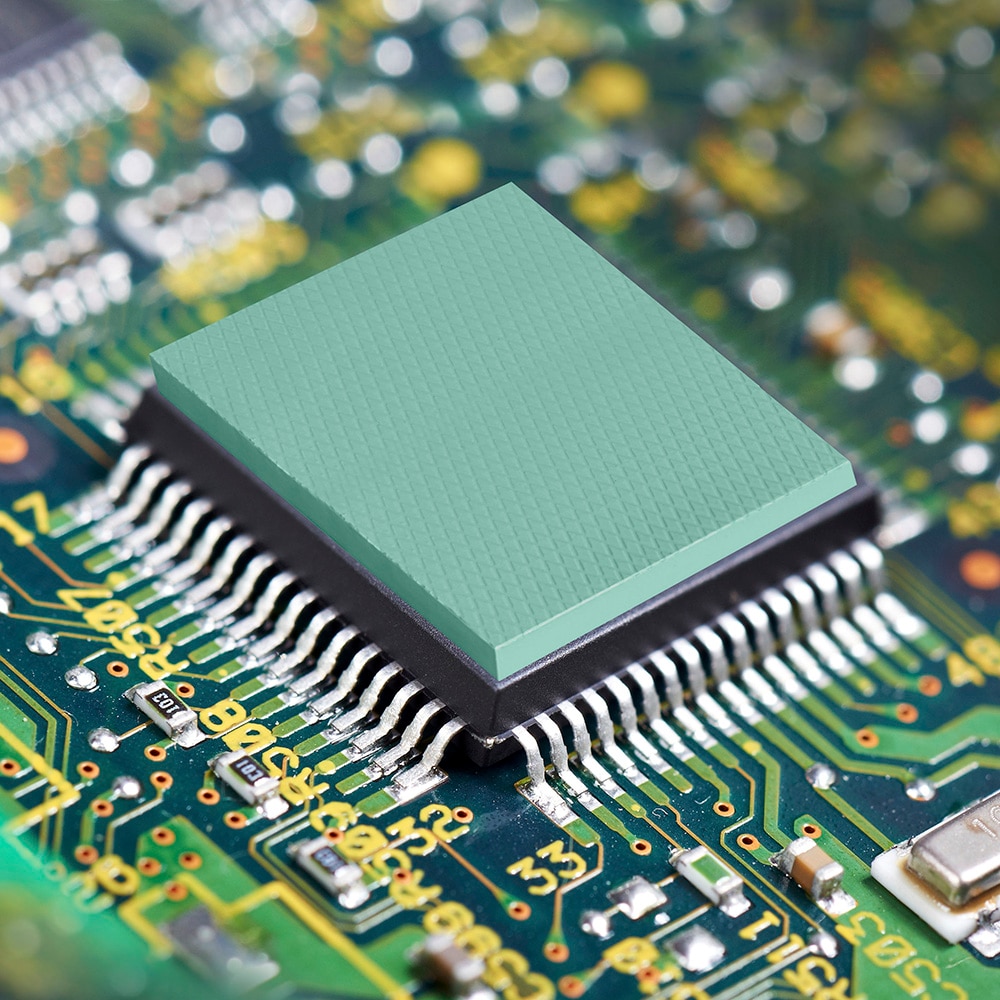

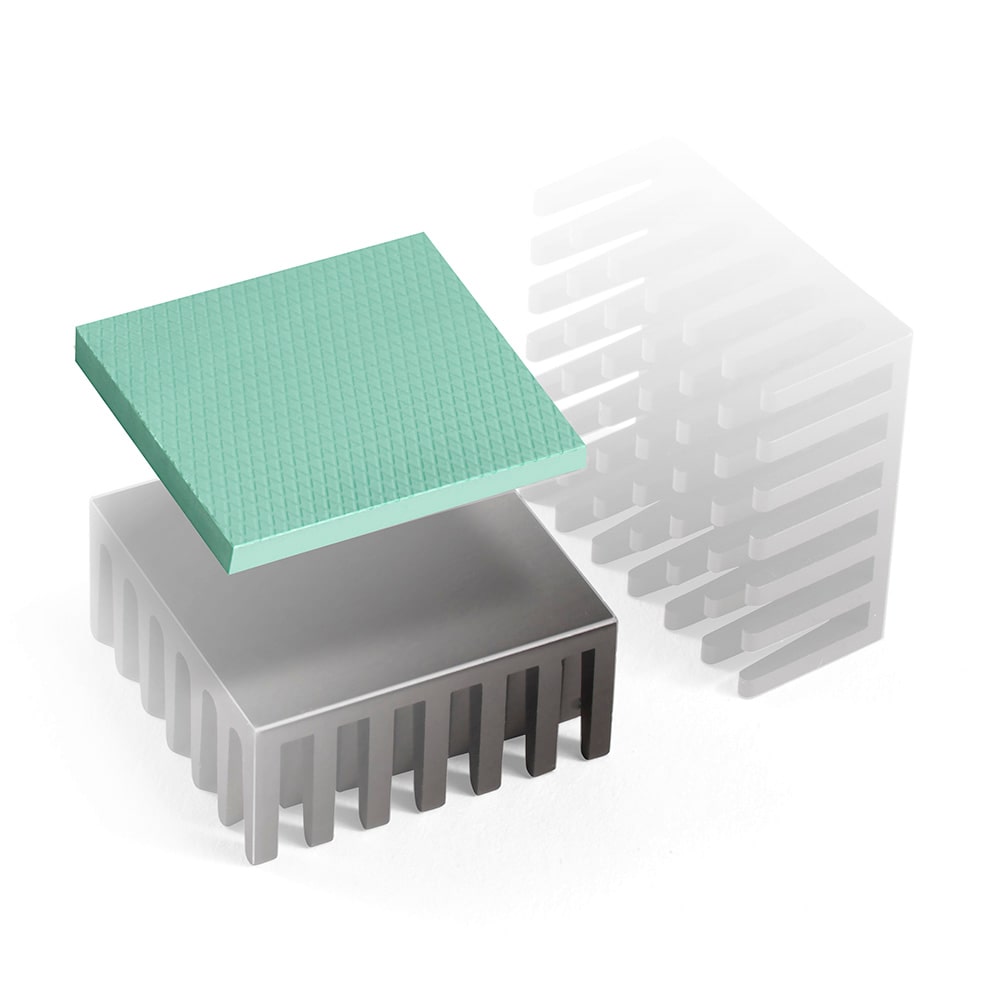

Parker Chomerics THERM-A-GAP™ PAD 60 Thermally Conductive Gap Filler Pad is a soft, high performance thermal gap filler pad with 6.0 W/m-K and a Shore 00 hardness of 31. THERM-A-GAP PAD 60 offers the enticing combination of both excellent thermal conductivity and very low deflection, along with very low outgassing, to provide an effective thermal interface between heat sinks and electronic devices where there are uneven surfaces, air gaps and rough surface textures may exist.

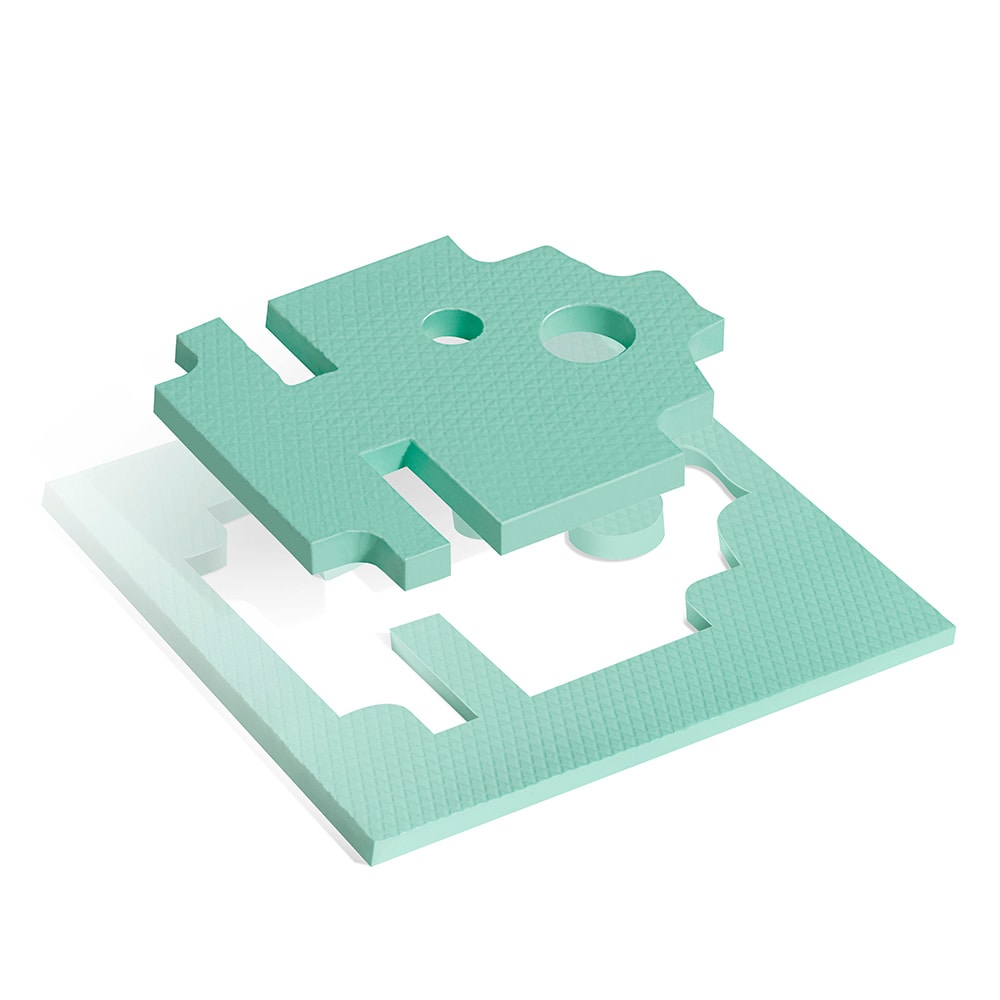

THERM-A-GAP PAD 60 is available in various thicknesses and finished in standard sheets of 10" x 15" . Custom size configurations and die cut parts are available as individual parts, or on sheets.

To receive a quote on a custom size part, choose your thickness and carrier options, and then select “custom” size.
Be sure to write in the comments section, upon check out of your quote request, which custom size dimensions you need. Our team will then reach out for your specific drawing to complete your quote request.

Available Carriers:
• A – aluminum foil (with PSA) - this carrier’s primary function is to allow a pressure sensitive adhesive on the gap pad.
• No carrier (no letter distinction) - no carrier or “un-reinforced” option allows the gap pad to have high tack surfaces on both sides, allowing for the pad to be highly conformable, but it does make cutting and handling of the product more difficult.

Features and Benefits:
• 6.0 W/m-K Thermal Conductivity
• Thermal putty-like modulus
•Ultra-low deflection force requirements
• High thermal conductivity
• High tack surface reduces contact resistance
• UL 94 V-0 flammability rated
• RoHS compliant

Typical Applications:
• Telecommunications equipment
• Consumer electronics
• Automotive electronics (ECUs)
• LEDs & lighting
• Power conversion
• Desktop computers, laptops, servers
• Handheld devices
• Memory modules
• Vibration dampening

Related Documents

Literature and Reference Materials
Blog Post: Design Guidelines for Grounding, Shielding and Thermal Management in Wi-Fi 6E and Wi-Fi 7 Gateways
Blog Post: This Is the Next Generation High Performing Thermal Gap Filler Pad
Case Study: High Performance Thermal Gap Pad for Smart Home Device
Datasheet: THERM-A-GAP PAD 60
Product Catalog: Thermal Interface Materials
Shelf Life and Material Re-Certification for Thermal Interface Materials
White Paper: Choosing Between Thermal Gels and Thermal Gap Filler Pads
Contact & Support Information
Request a Chomerics Product Sample
Find Your Local Parker Chomerics Sales Rep or Distributor
Request a Quote
Compliance, Certifications & Safety
Parker Chomerics Safety Data Sheets (SDS)
Product Compliance: China RoHS Compliant
Product Compliance: EU PFOS Compliant
Product Compliance: EU RoHS Compliant
Product Compliance: REACH SVHC Meets Requirements
Test Report: THERM-A-GAP PAD 60 Reliability Report
Product Demos & Tutorials
Parker Chomerics Product Case Studies
Selector Guides
Healthcare and Life Sciences Solutions - Medical Devices Manufacturing Products
×
View Catalog
Share / Email
Print
Products Material Thickness Carrier Type Shape Size
61-04-1015-PAD60 0.04 in (1.01 mm) No Carrier (Unsupported) Flat sheets 10 in x 15 in (254 mm x 381 mm)
61-04-CUSTOM-PAD60 0.04 in (1.01 mm) No Carrier (Unsupported) Custom Custom
61-05-1015-PAD60 0.05 in (1.27 mm) No Carrier (Unsupported) Flat sheets 10 in x 15 in (254 mm x 381 mm)
61-05-CUSTOM-PAD60 0.05 in (1.27 mm) No Carrier (Unsupported) Custom Custom
61-06-1015-PAD60 0.06 in (1.52 mm) No Carrier (Unsupported) Flat sheets 10 in x 15 in (254 mm x 381 mm)
61-06-CUSTOM-PAD60 0.06 in (1.52 mm) No Carrier (Unsupported) Custom Custom
61-07-1015-PAD60 0.07 in (1.78 mm) No Carrier (Unsupported) Flat sheets 10 in x 15 in (254 mm x 381 mm)
61-07-CUSTOM-PAD60 0.07 in (1.78 mm) No Carrier (Unsupported) Custom Custom
61-08-1015-PAD60 0.08 in (2.03 mm) No Carrier (Unsupported) Flat sheets 10 in x 15 in (254 mm x 381 mm)
61-08-CUSTOM-PAD60 0.08 in (2.03 mm) No Carrier (Unsupported) Custom Custom
61-09-1015-PAD60 0.09 in (2.29 mm) No Carrier (Unsupported) Flat sheets 10 in x 15 in (254 mm x 381 mm)
61-09-CUSTOM-PAD60 0.09 in (2.29 mm) No Carrier (Unsupported) Custom Custom
61-10-1015-PAD60 0.10 in (2.54 mm) No Carrier (Unsupported) Flat sheets 10 in x 15 in (254 mm x 381 mm)
61-10-CUSTOM-PAD60 0.10 in (2.54 mm) No Carrier (Unsupported) Custom Custom
61-11-1015-PAD60 0.11 in (2.79 mm) No Carrier (Unsupported) Flat sheets 10 in x 15 in (254 mm x 381 mm)
61-11-CUSTOM-PAD60 0.11 in (2.79 mm) No Carrier (Unsupported) Custom Custom
61-12-1015-PAD60 0.12 in (3.05 mm) No Carrier (Unsupported) Flat sheets 10 in x 15 in (254 mm x 381 mm)
61-12-CUSTOM-PAD60 0.12 in (3.05 mm) No Carrier (Unsupported) Custom Custom
61-13-1015-PAD60 0.13 in (3.30 mm) No Carrier (Unsupported) Flat sheets 10 in x 15 in (254 mm x 381 mm)
61-13-CUSTOM-PAD60 0.13 in (3.30 mm) No Carrier (Unsupported) Custom Custom
61-14-1015-PAD60 0.14 in (3.56 mm) No Carrier (Unsupported) Flat sheets 10 in x 15 in (254 mm x 381 mm)
61-14-CUSTOM-PAD60 0.14 in (3.56 mm) No Carrier (Unsupported) Custom Custom
61-15-1015-PAD60 0.15 in (3.81 mm) No Carrier (Unsupported) Flat sheets 10 in x 15 in (254 mm x 381 mm)
61-15-CUSTOM-PAD60 0.15 in (3.81 mm) No Carrier (Unsupported) Custom Custom
61-16-1015-PAD60 0.16 in (4.06 mm) No Carrier (Unsupported) Flat sheets 10 in x 15 in (254 mm x 381 mm)
61-16-CUSTOM-PAD60 0.16 in (4.06 mm) No Carrier (Unsupported) Custom Custom
61-17-1015-PAD60 0.17 in (4.32 mm) No Carrier (Unsupported) Flat sheets 10 in x 15 in (254 mm x 381 mm)
61-17-CUSTOM-PAD60 0.17 in (4.32 mm) No Carrier (Unsupported) Custom Custom
61-18-1015-PAD60 0.18 in (4.57 mm) No Carrier (Unsupported) Flat sheets 10 in x 15 in (254 mm x 381 mm)
61-18-CUSTOM-PAD60 0.18 in (4.57 mm) No Carrier (Unsupported) Custom Custom
61-19-1015-PAD60 0.19 in (4.83 mm) No Carrier (Unsupported) Flat sheets 10 in x 15 in (254 mm x 381 mm)
61-19-CUSTOM-PAD60 0.19 in (4.83 mm) No Carrier (Unsupported) Custom Custom
61-20-1015-PAD60 0.20 in (5.08 mm) No Carrier (Unsupported) Flat sheets 10 in x 15 in (254 mm x 381 mm)
61-20-CUSTOM-PAD60 0.20 in (5.08 mm) No Carrier (Unsupported) Custom Custom
62-02-1015-PAD60A 0.02 in (0.508 mm) A - Aluminum Foil with PSA Flat sheets 10 in x 15 in (254 mm x 381 mm)
62-03-1015-PAD60A 0.03 in (0.762 mm) A - Aluminum Foil with PSA Flat sheets 10 in x 15 in (254 mm x 381 mm)
62-04-1015-PAD60A 0.04 in (1.01 mm) A - Aluminum Foil with PSA Flat sheets 10 in x 15 in (254 mm x 381 mm)
62-04-CUSTOM-PAD60A 0.04 in (1.01 mm) A - Aluminum Foil with PSA Custom Custom
62-05-1015-PAD60A 0.05 in (1.27 mm) A - Aluminum Foil with PSA Flat sheets 10 in x 15 in (254 mm x 381 mm)
62-05-CUSTOM-PAD60A 0.05 in (1.27 mm) A - Aluminum Foil with PSA Custom Custom
62-06-1015-PAD60A 0.06 in (1.52 mm) A - Aluminum Foil with PSA Flat sheets 10 in x 15 in (254 mm x 381 mm)
62-06-CUSTOM-PAD60A 0.06 in (1.52 mm) A - Aluminum Foil with PSA Custom Custom
62-07-1015-PAD60A 0.07 in (1.78 mm) A - Aluminum Foil with PSA Flat sheets 10 in x 15 in (254 mm x 381 mm)
62-07-CUSTOM-PAD60A 0.07 in (1.78 mm) A - Aluminum Foil with PSA Custom Custom
62-08-1015-PAD60A 0.08 in (2.03 mm) A - Aluminum Foil with PSA Flat sheets 10 in x 15 in (254 mm x 381 mm)
62-08-CUSTOM-PAD60A 0.08 in (2.03 mm) A - Aluminum Foil with PSA Custom Custom
62-09-1015-PAD60A 0.09 in (2.29 mm) A - Aluminum Foil with PSA Flat sheets 10 in x 15 in (254 mm x 381 mm)
62-09-CUSTOM-PAD60A 0.09 in (2.29 mm) A - Aluminum Foil with PSA Custom Custom
62-10-1015-PAD60A 0.10 in (2.54 mm) A - Aluminum Foil with PSA Flat sheets 10 in x 15 in (254 mm x 381 mm)
62-10-CUSTOM-PAD60A 0.10 in (2.54 mm) A - Aluminum Foil with PSA Custom Custom
62-11-1015-PAD60A 0.11 in (2.79 mm) A - Aluminum Foil with PSA Flat sheets 10 in x 15 in (254 mm x 381 mm)
62-11-CUSTOM-PAD60A 0.11 in (2.79 mm) A - Aluminum Foil with PSA Custom Custom
62-12-1015-PAD60A 0.12 in (3.05 mm) A - Aluminum Foil with PSA Flat sheets 10 in x 15 in (254 mm x 381 mm)
62-12-CUSTOM-PAD60A 0.12 in (3.05 mm) A - Aluminum Foil with PSA Custom Custom
62-13-1015-PAD60A 0.13 in (3.30 mm) A - Aluminum Foil with PSA Flat sheets 10 in x 15 in (254 mm x 381 mm)
62-13-CUSTOM-PAD60A 0.13 in (3.30 mm) A - Aluminum Foil with PSA Custom Custom
62-14-1015-PAD60A 0.14 in (3.56 mm) A - Aluminum Foil with PSA Flat sheets 10 in x 15 in (254 mm x 381 mm)
62-14-CUSTOM-PAD60A 0.14 in (3.56 mm) A - Aluminum Foil with PSA Custom Custom
62-15-1015-PAD60A 0.15 in (3.81 mm) A - Aluminum Foil with PSA Flat sheets 10 in x 15 in (254 mm x 381 mm)
62-15-CUSTOM-PAD60A 0.15 in (3.81 mm) A - Aluminum Foil with PSA Custom Custom
62-16-1015-PAD60A 0.16 in (4.06 mm) A - Aluminum Foil with PSA Flat sheets 10 in x 15 in (254 mm x 381 mm)
62-16-CUSTOM-PAD60A 0.16 in (4.06 mm) A - Aluminum Foil with PSA Custom Custom
62-17-1015-PAD60A 0.17 in (4.32 mm) A - Aluminum Foil with PSA Flat sheets 10 in x 15 in (254 mm x 381 mm)
62-17-CUSTOM-PAD60A 0.17 in (4.32 mm) A - Aluminum Foil with PSA Custom Custom
62-18-1015-PAD60A 0.18 in (4.57 mm) A - Aluminum Foil with PSA Flat sheets 10 in x 15 in (254 mm x 381 mm)
62-18-CUSTOM-PAD60A 0.18 in (4.57 mm) A - Aluminum Foil with PSA Custom Custom
62-19-1015-PAD60A 0.19 in (4.83 mm) A - Aluminum Foil with PSA Flat sheets 10 in x 15 in (254 mm x 381 mm)
62-19-CUSTOM-PAD60A 0.19 in (4.83 mm) A - Aluminum Foil with PSA Custom Custom
62-20-1015-PAD60A 0.20 in (5.08 mm) A - Aluminum Foil with PSA Flat sheets 10 in x 15 in (254 mm x 381 mm)
62-20-CUSTOM-PAD60A 0.20 in (5.08 mm) A - Aluminum Foil with PSA Custom Custom
