Premium Safety Quick Coupling with a Self-Venting System, Series 24

Premium Safety Quick Coupling with a Self-Venting System, Series 24

Where to Buy

Premium self-venting quick coupling system with nominal diameter 5.5 for pneumatic applications up to 12 bar. Coupling system with ISO 6150 B profile. Available made of brass/steel.

Technical Specifications

  • Minimum Operating Temperature: -20 °C
  • Diameter: Nominal: 5,5 mm
  • Application: Pneumatic
  • Brand: Rectus
  • Fitting Connection Type: Female Thread, Male Thread, Hose Barb
  • Specifications Met: ISO 6150 B, MIL
  • Interchange Type: ISO 6150 B
  • Maximum Operating Pressure: 170 psi, 12 bar
  • Maximum Operating Temperature: 140 °F, 60 °C
  • Media: Pneumatic Media
  • Valve Type: High Flow Air, Poppet
  • Valve Included: Yes
  • Version: Self-Venting
  • Length: 57 to 71 mm
  • Hex Size: 22 to 24 mm
  • Outside Diameter: 31 mm
  • Materials of Construction: Brass
  • Seal Material: NBR
  • Safety Features: Self-Venting
Safety Warning

Full Product Description

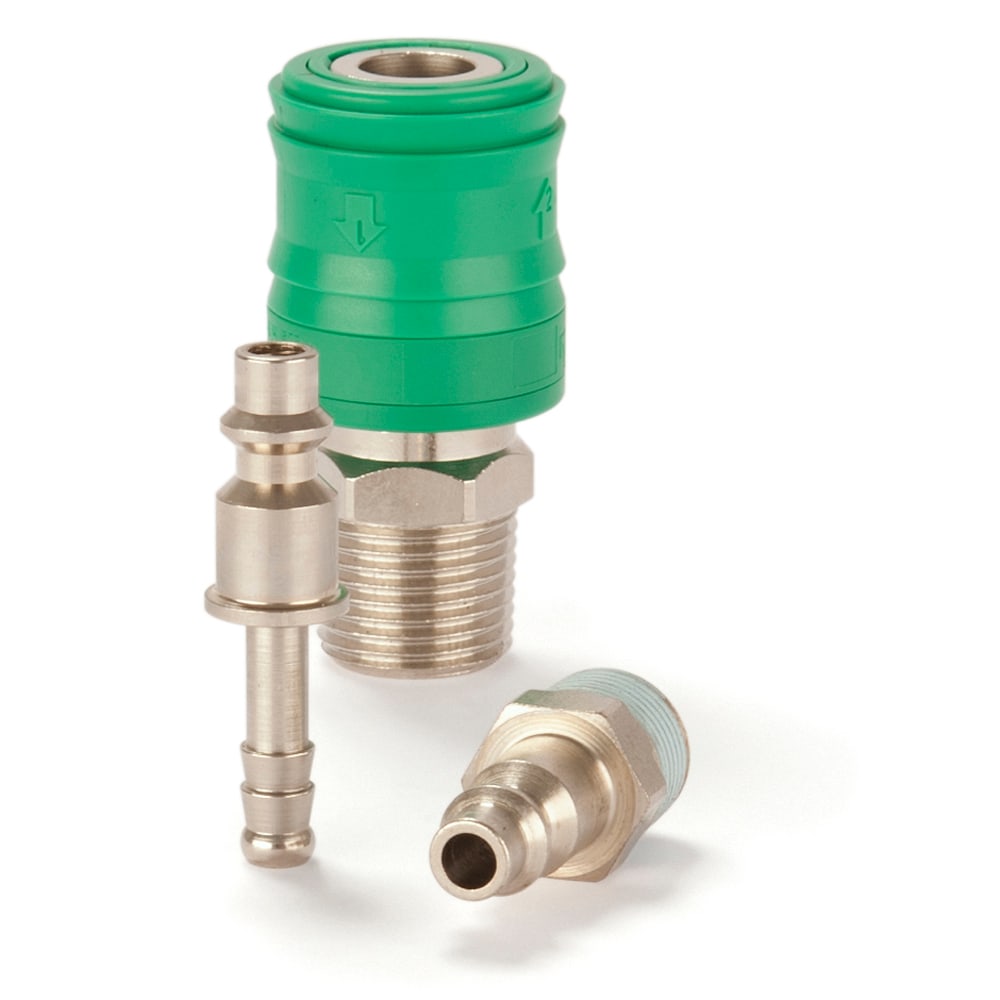

Parker's Premium Safety Quick Coupling Series 24 is a safety coupling with a self-venting system according to ISO 6150 B. The self-venting takes place during disconnection – no risk of pressurized hoses being tossed around. When the sleeve is pulled back, the plug is released yet remains locked in. The coupling valve closes and the air is vented from the air line at the same time. Only then, by operating the sleeve again, can uncoupling take place safely. The system fulfils the requirements of ISO 4414 – increased safety standards in the work place. The plastic sleeve does not scratch working surfaces.

The right plug for self-venting series 24 can be found under series 23.

Markets:
- Machinery Construction
- Automotive

Features/Benefits:
- Safety coupling with self-venting mechanism according to ISO 6150 B
- No whiplash effect due to the self-venting which takes place during disconnection
- Plastic sleeve - no scratching of the working surfaces

Applications:
- Pneumatic Tools
- Pneumatic Airline Systems
- Assembly Lines

Related Documents

Literature and Reference Materials
Parker Legris Rectus - General Catalogue
Catalogue Page Parker Rectus Series 24 Self-Venting
Datasheet Series 24 Self-Venting
Instructions for use - Series 14KE, 24KE, 26KE
Compliance, Certifications & Safety
Certificate of conformity - 2014 68 EU_connectic
Product Demos & Tutorials
Parker Rectus--Product Demo : KA Shut-off System - Single Shut-off Quick Coupling
×
View Catalog
Share / Email
Print
Products Type Connection Type Connection Thread Size (inch) Hose I.D.
24KEAK13MPN Coupling Male Thread - tapered 1/4 na
24KEAK17MPN Coupling Male Thread - tapered 3/8 na
24KEAK21MPN Coupling Male Thread - tapered 1/2 na
24KEIW13MPN Coupling Female Thread - parallel 1/4 na
24KEIW17MPN Coupling Female Thread - parallel 3/8 na
24KETF06MPN Coupling Hose Barb na 6
24KETF08MPN Coupling Hose Barb na 8
24KETF09MPN Coupling Hose Barb na 9
24KETF10MPN Coupling Hose Barb na 10
24KETF13MPN Coupling Hose Barb na 13
24KEIW21MPN Coupling Female Thread - parallel 1/2 na
