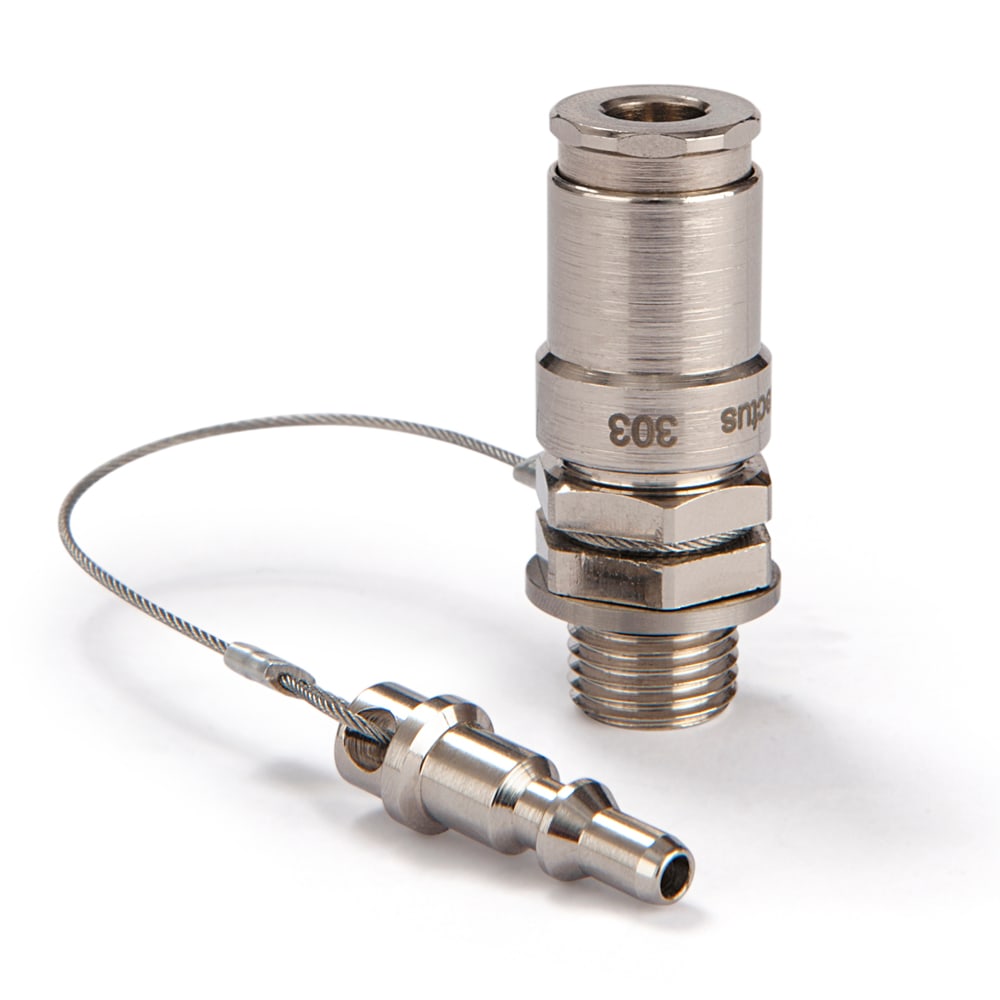

Quick Coupling with ISO 6150 C Profile for Railway Applications, Series 303 Quick Coupling with ISO 6150 C Profile for Railway Applications, Series 303

Quick Coupling with ISO 6150 C Profile for Railway Applications, Series 303

Quick coupling system with nominal diameter 3 for railway applications up to 35 bar. Coupling system with ISO 6150 C profile. Available made of brass or stainless steel.

Technical Specifications

  • Diameter: Nominal: 3.0 mm
  • Valve Included: Yes or No acc. to the version
  • Version: Single Shut-Off
  • Length: 33 up to 56,5 mm
  • Hex Size: 14, 17 mm
  • Outside Diameter: 18 or 17,5 mm
  • Seal Material: Cryogenic NBR
  • Minimum Operating Temperature: -55 °C
  • Maximum Operating Temperature: 100 °C
  • Maximum Operating Pressure: 35 bar
  • Application: Railway
  • Profile: ISO C
Safety Warning

Full Product Description

Parker's series 303 is a mini coupling with a plug profile in accordance with ISO 6150 C. The coupling impresses with compact design and single-hand operation - allowing coupling and uncoupling with one hand even in places where access is difficult.

Markets:
- Railway

Features/Benefits:
- Single-hand operation
- Above-average flow rates ensure fast and reliable control of the pneumatic braking circuits

Applications:
- Pneumatic Braking Systems
- Pneumatic Applications

Related Documents

Literature and Reference Materials
Parker Legris Rectus - General Catalogue
Compliance, Certifications & Safety
Certificate of conformity - 2014 68 EU_connectic
×
Products Type Connection Type Connection Thread Size (inch) Hose I.D. Material
303KAAW10MPNS Coupling Male Thread with front O-ring 1/8 na Brass
303KAAW10EPXS Coupling Male Thread with front O-ring 1/8 na AISI 316L
303KAAW13MPNS Coupling Male Thread with front O-ring 1/4 na Brass
303KAAW13EPXS Coupling Male Thread with front O-ring 1/4 na AISI 316L
303KAAD12MPNS Coupling Male thread with 24° sealing cone for external pipe diameter Ø 6mm in accordance with ISO 8434-1 Series L 12x1,5 na Brass
303KAAD12EPXS Coupling Male thread with 24° sealing cone for external pipe diameter Ø 6mm in accordance with ISO 8434-1 Series L 12x1,5 na AISI 316L
303KAIW10MPNS Coupling Female Thread 1/8 na Brass
303KAIW10EPXS Coupling Female Thread 1/8 na AISI 316L
303KAIW13MPNS Coupling Female Thread 1/4 na Brass
303KAIW13EPXS Coupling Female Thread 1/4 na AISI 316L
303KATP06MPNS Coupling Parker Push-Lok na 6 Brass
303KATP06EPXS Coupling Parker Push-Lok na 6 AISI 316L
303SFAW10MPN Plug Male Thread with front O-ring 1/8 na Brass
303SFAW10EPX Plug Male Thread with front O-ring 1/8 na AISI 316L
303SFAW13MPN Plug Male Thread with front O-ring 1/4 na Brass
303SFAW13EPX Plug Male Thread with front O-ring 1/4 na AISI 316L
303SFAD12MXN Plug Male thread with 24° sealing cone for external pipe diameter Ø 6mm in accordance with ISO 8434-1 Series L 12x1,5 na Brass
303SFAD12EXX Plug Male thread with 24° sealing cone for external pipe diameter Ø 6mm in accordance with ISO 8434-1 Series L 12x1,5 na AISI 316L
303SFIW10MXN Plug Female Thread 1/8 na Brass
303SFIW10EXX Plug Female Thread 1/8 na AISI 316L
303SFIW13MXN Plug Female Thread 1/4 na Brass
303SFIW13EXX Plug Female Thread 1/4 na AISI 316L
303SFTP06MXN Plug Parker Push-Lok na 6 Brass
303SFTP06EXX Plug Parker Push-Lok na 6 AISI 316L
