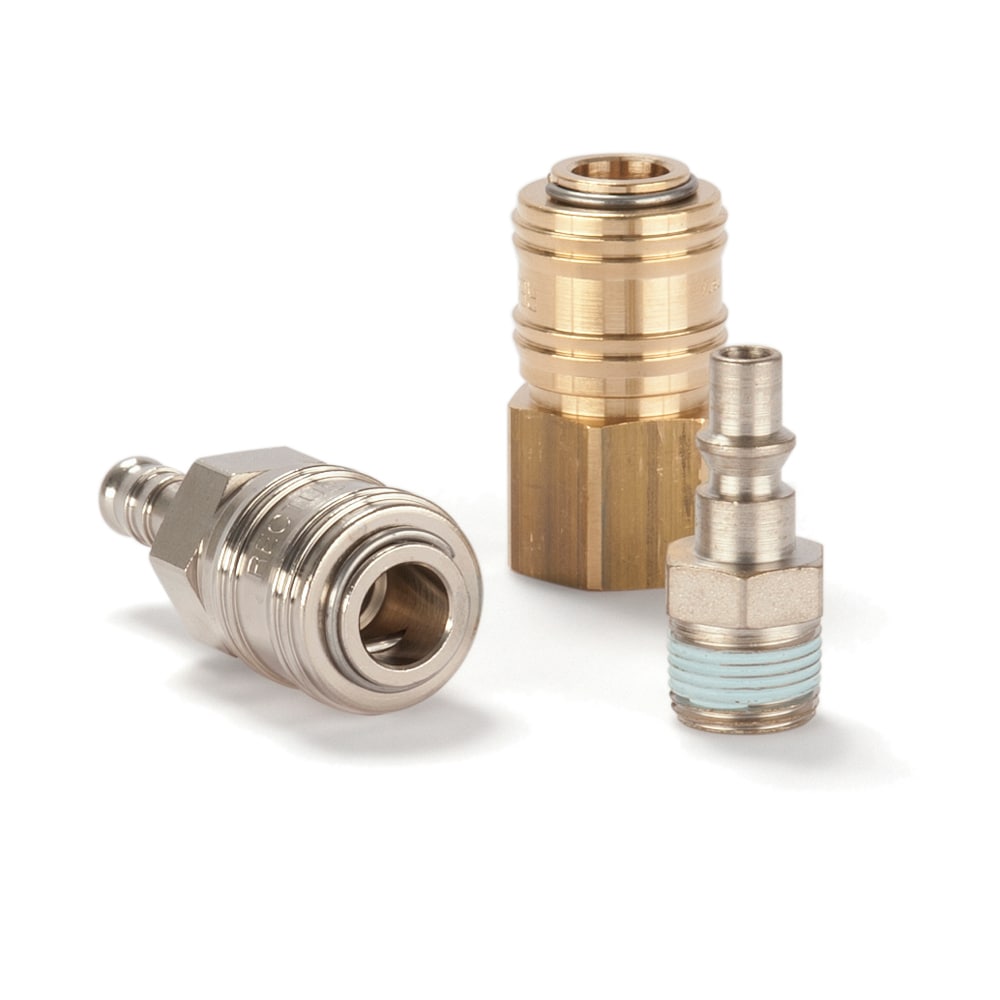

Quick Coupling, ARO profile, ND 5.5 (Series 14)

Quick Coupling, ARO profile, ND 5.5 (Series 14)

Quick coupling system with nominal diameter 5.5 for pneumatic applications up to 35 bar. Available made of brass.

Technical Specifications

  • Diameter: 5.5 mm (nominal)
  • Flow Rate: 1400 L/min
  • Interchange Type: ARO Profile
  • Brand: Parker, Rectus
  • Maximum Operating Temperature: up to 100 °C, up to 212 °F
  • Media: Compressed Air, Air
  • Minimum Operating Temperature: -20 °C, -4 °F
  • Length: 57 to 71 mm
  • Fitting Connection Type: Female Thread, Male Thread, Hose Barb
  • Application: Air & Gas Compressor, Industrial Machinery, Safety
  • Hex Size: 22 to 24 mm
  • Valve Included: Yes acc. to version, No acc. to version
  • Valve Type: High Flow Valve
  • Body Material: Brass
  • Outside Diameter: 31 mm
  • Seal Material: NBR
Safety Warning

Full Product Description

Parker's Quick Coupling Series 14 is a robust brass quick coupling with numerous connection options. The preferred application for this series is the compressed air technology.
The coupling system is developed for single-hand operation and the plug design is optimized through greater insert depth.

The right plug for series 14 can be found under series 22.

Markets:
- Life Sciences
- Mobile & Defense
- Air & Gaz Compressor

Features/Benefits:
- Single-hand operation for easy and fast connection
- Plug design optimized through greater insert depth

Related Documents

×
Products Coupling Half Function Connection Type Connection Size Body Material
14KEAK13MPN Coupler Self-Venting Male BSPT R 1/4 Brass
14KEAK17MPN Coupler Self-Venting Male BSPT R 3/8 Brass
14KEAK21MPN Coupler Self-Venting Male BSPT R 1/2 Brass
14KEIW13MPN Coupler Self-Venting Female BSPP G 1/4 Brass
14KEIW17MPN Coupler Self-Venting Female BSPP G 3/8 Brass
14KEIW21MPN Coupler Self-Venting Female BSPP G 1/2 Brass
14KETF08MPN Coupler Self-Venting Hose Barb 8 MM Brass
14KETF09MPN Coupler Self-Venting Hose Barb 9 MM Brass
14KETF10MPN Coupler Self-Venting Hose Barb 10 MM Brass
