Piston seal Prädifa series B8, Ultrathan® | Product Series
var attrArray = new Array();
var attrValueMap = {};
attrValueMap['Groove Width'] = '6.3 ';
attrValueMap['Inside Diameter (mm)'] = '10 ';
attrValueMap['Outside Diameter (mm)'] = '18 ';
attrValueMap['Element Height (mm)'] = '5.7 ';
attrValueMap['Minimum Working Temperature (°C)'] = '-35 ';
attrValueMap['Maximum Working Temperature (°C)'] = '100 ';
attrValueMap['Material - Seals'] = 'P5008 ';
attrArray.push(attrValueMap);
var attrValueMap = {};
attrValueMap['Inside Diameter (mm)'] = '16 ';
attrValueMap['Groove Width'] = '6.3 ';
attrValueMap['Outside Diameter (mm)'] = '24 ';
attrValueMap['Element Height (mm)'] = '5.7 ';
attrValueMap['Minimum Working Temperature (°C)'] = '-35 ';
attrValueMap['Maximum Working Temperature (°C)'] = '100 ';
attrValueMap['Material - Seals'] = 'P5008 ';
attrArray.push(attrValueMap);
var attrValueMap = {};
attrValueMap['Inside Diameter (mm)'] = '20 ';
attrValueMap['Outside Diameter (mm)'] = '28 ';
attrValueMap['Groove Width'] = '8 ';
attrValueMap['Minimum Working Temperature (°C)'] = '-35 ';
attrValueMap['Maximum Working Temperature (°C)'] = '100 ';
attrValueMap['Element Height (mm)'] = '7 ';
attrValueMap['Material - Seals'] = 'P5008 ';
attrArray.push(attrValueMap);
var attrValueMap = {};
attrValueMap['Inside Diameter (mm)'] = '32 ';
attrValueMap['Groove Width'] = '6.3 ';
attrValueMap['Outside Diameter (mm)'] = '40 ';
attrValueMap['Element Height (mm)'] = '5.7 ';
attrValueMap['Minimum Working Temperature (°C)'] = '-35 ';
attrValueMap['Maximum Working Temperature (°C)'] = '100 ';
attrValueMap['Material - Seals'] = 'P5008 ';
attrArray.push(attrValueMap);
var attrValueMap = {};
attrValueMap['Element Height (mm)'] = '7,3 ';
attrValueMap['Outside Diameter (mm)'] = '50 ';
attrValueMap['Groove Width'] = '8 ';
attrValueMap['Inside Diameter (mm)'] = '40 ';
attrValueMap['Minimum Working Temperature (°C)'] = '-35 ';
attrValueMap['Maximum Working Temperature (°C)'] = '100 ';
attrValueMap['Material - Seals'] = 'P5008 ';
attrArray.push(attrValueMap);
var attrValueMap = {};
attrValueMap['Element Height (mm)'] = '7,3 ';
attrValueMap['Inside Diameter (mm)'] = '50 ';
attrValueMap['Groove Width'] = '8 ';
attrValueMap['Outside Diameter (mm)'] = '60 ';
attrValueMap['Minimum Working Temperature (°C)'] = '-35 ';
attrValueMap['Maximum Working Temperature (°C)'] = '100 ';
attrValueMap['Material - Seals'] = 'P5008 ';
attrArray.push(attrValueMap);
var attrValueMap = {};
attrValueMap['Element Height (mm)'] = '7,3 ';
attrValueMap['Inside Diameter (mm)'] = '50 ';
attrValueMap['Groove Width'] = '8 ';
attrValueMap['Outside Diameter (mm)'] = '60 ';
attrValueMap['Minimum Working Temperature (°C)'] = '-35 ';
attrValueMap['Maximum Working Temperature (°C)'] = '100 ';
attrValueMap['Material - Seals'] = 'P5008 ';
attrArray.push(attrValueMap);
var attrValueMap = {};
attrValueMap['Element Height (mm)'] = '8,7 ';
attrValueMap['Groove Width'] = '9.5 ';
attrValueMap['Inside Diameter (mm)'] = '63 ';
attrValueMap['Minimum Working Temperature (°C)'] = '-35 ';
attrValueMap['Outside Diameter (mm)'] = '75 ';
attrValueMap['Maximum Working Temperature (°C)'] = '100 ';
attrValueMap['Material - Seals'] = 'P5008 ';
attrArray.push(attrValueMap);
var attrValueMap = {};
attrValueMap['Element Height (mm)'] = '9,4 ';
attrValueMap['Inside Diameter (mm)'] = '80 ';
attrValueMap['Groove Width'] = '10.4 ';
attrValueMap['Minimum Working Temperature (°C)'] = '-35 ';
attrValueMap['Outside Diameter (mm)'] = '95 ';
attrValueMap['Maximum Working Temperature (°C)'] = '100 ';
attrValueMap['Material - Seals'] = 'P5008 ';
attrArray.push(attrValueMap);

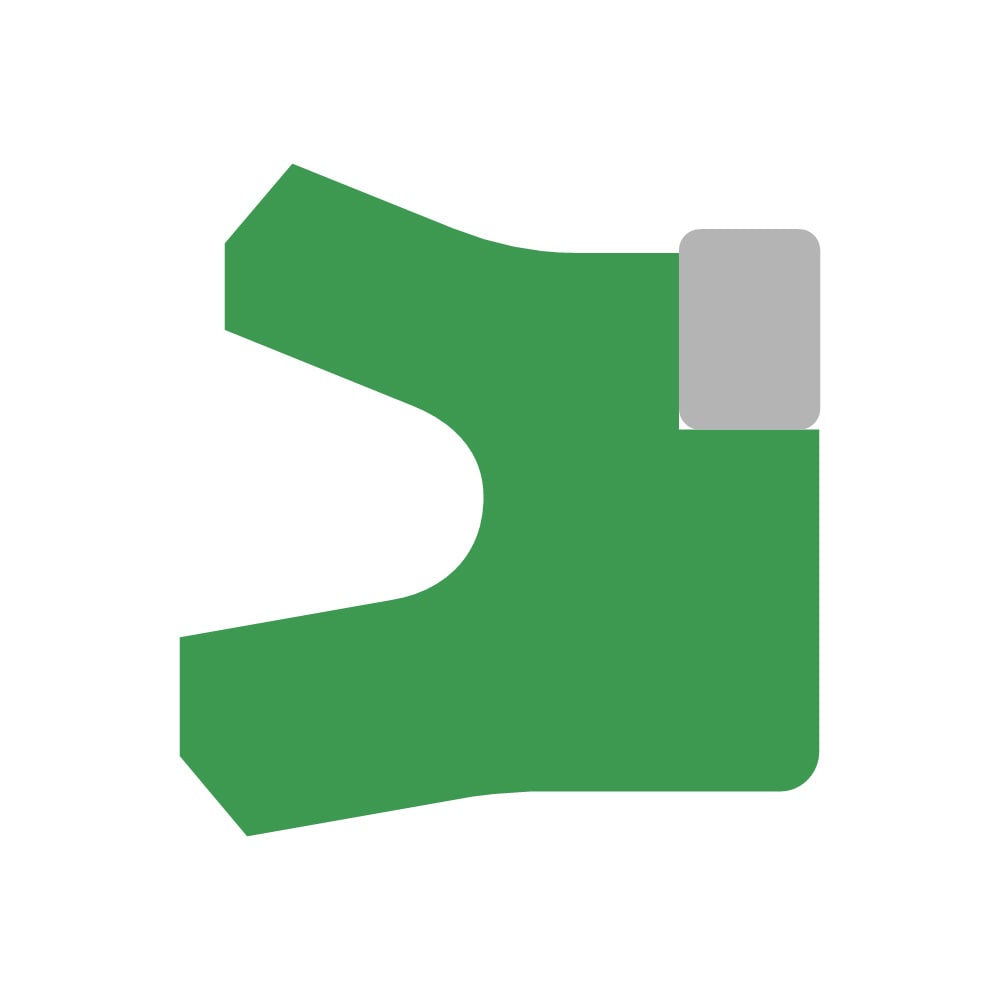

Piston seal for hydraulic cylinders, single-acting, polyurethane u-cup design with additional back-up ring. For high-pressure applications. Insensitive to extreme pressure peaks.Robust seal profile for harshest operating conditions. ISO 5597, ISO 6020.
FAILURE OR IMPROPER SELECTION OR IMPROPER USE OF THE PRODUCTS DESCRIBED HEREIN OR RELATED ITEMS CAN CAUSE DEATH, PERSONAL INJURY AND PROPERTY DAMAGE. This document and other information from Parker-Hannifin Corporation, its subsidiaries and authorized distributors provide product or system options for further investigation by users having technical expertise. The user, through its own analysis and testing, is solely responsible for making the final selection of the system and components and assuring that all performance, endurance, maintenance, safety and warning requirements of the application are met. The user must analyze all aspects of the application, follow applicable industry standards, and follow the information concerning the product in the current product catalog and in any other materials provided from Parker or its subsidiaries or authorized distributors. To the extent that Parker or its subsidiaries or authorized distributors provide component or system options based upon data or specifications provided by the user, the user is responsible for determining that such data and specifications are suitable and sufficient for all applications and reasonably foreseeable uses of the components or systems.....
Click here to view all product safety information.
Full Product Description
The B8 Ultrathan® piston seal is a lip seal with interference fit. It is extremely wear resistant, resistant to pressure peaks and ensures reliable load holding. It is suitable for hydraulic high-pressure applications.
• Robust seal profile for harshest operating conditions. • Extreme wear resistance. • Assembly on one-part piston is possible. • Insensitive to extreme pressure peaks. • Extremely high extrusion resistance. • Excellent media resistance in case of suitable compound selection. • Suitable compounds available for special requirements of the food processing industry. • Suitable compounds available for special requirements of the chemical process industry. • Dimensions according to ISO 5597. • Installation in closed and undercut housings. • Additional sizes of machined products available on short notice.
Range of application: Mainly for sealing pistons in heavy-duty applications in mobile and stationary hydraulics.
