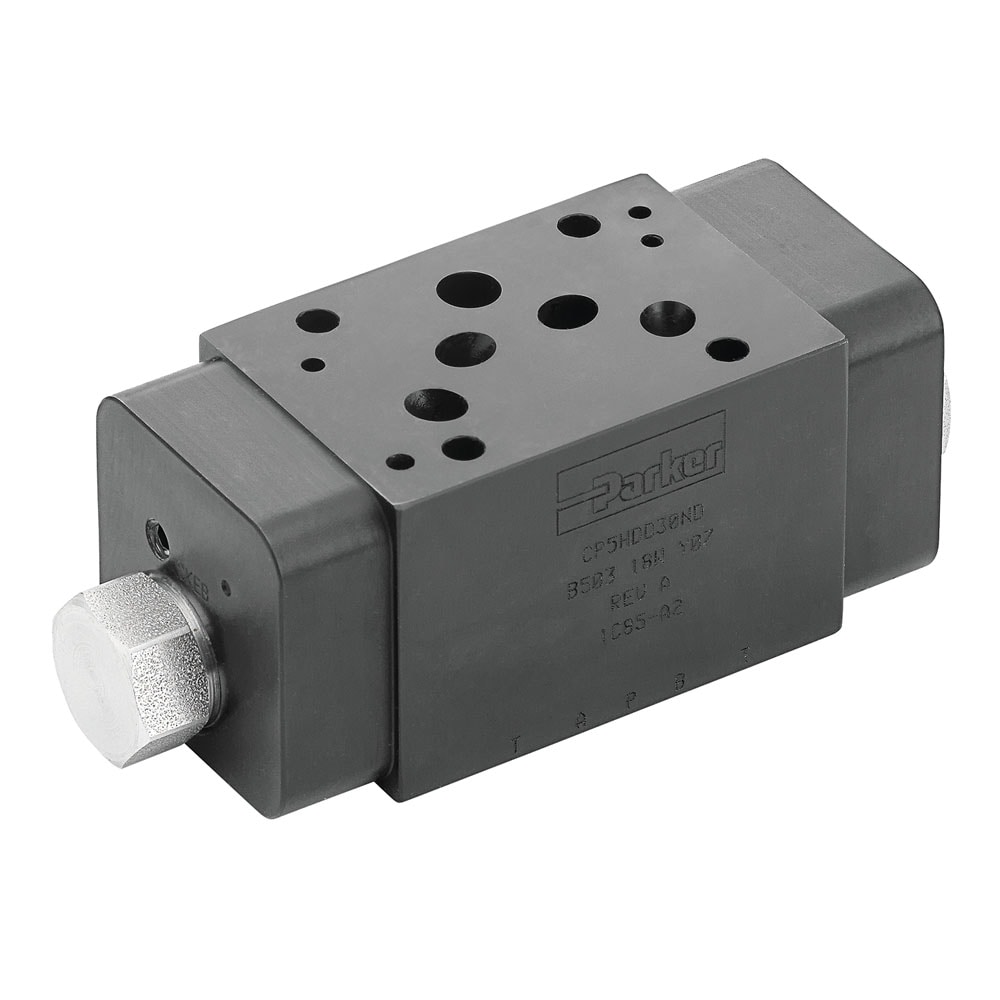

Pilot Operated Check Sandwich Valve – CP Series

Pilot Operated Check Sandwich Valve – CP Series

Where to Buy

Parker’s CP series pilot operated check valves are designed for maximum flow rates.

Technical Specifications

Maximum Operating Temperature: +122 °F
Maximum Flow Rate: 30, 60, 120 gal/min
Minimum Operating Temperature: -4 °F
Actuation Type: Hydraulic Pressure
Body Material: Aluminum, Ductile Iron
Seal Material: Nitrile, Fluorocarbon
Product Style: Pilot Operated Check
Cracking Pressure: 3 psi, 30 ± 0.2 bar
Maximum Operating Pressure: 3000, 5000 psi, 207, 345 bar
Filter Efficiency Rating: ISO 4406 (1999); 18/16/13 (meet NAS 1638:7)
Ratio: 3:01
Media: Oil
Mounting Type: Subplate
Weight: 3.8 lb, 0.8, 1.7, 1.3, 2.7, 2.4, 3.5, 7.2, 5.2, 11.6, 13.1, 15.9 kg

Safety Warning

Full Product Description

Parker’s CP series pilot operated check valves are typically used in combination with spool type directional control valves to ensure leak free positioning of the actuator. The inlet flow is free while the outlet flow is blocked. Pressure in the inlet line opens the check valve and allows free outlet flow.
