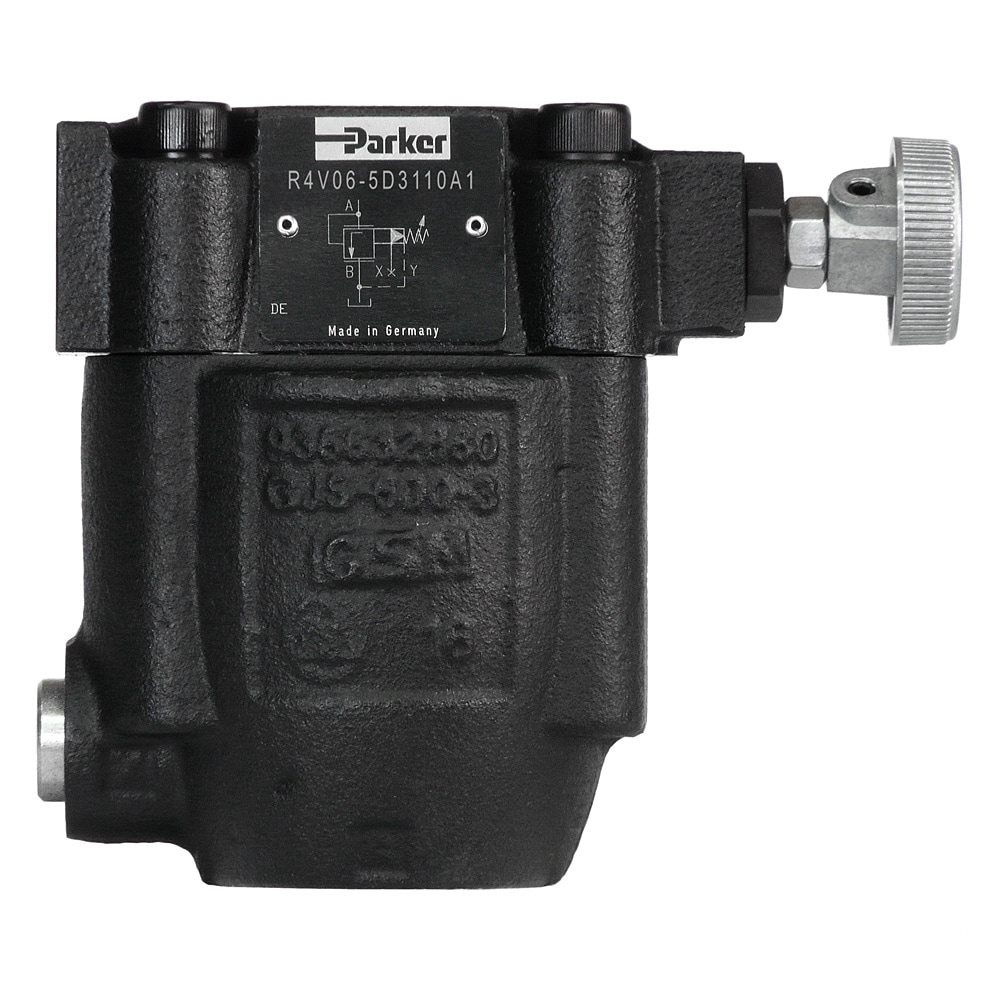

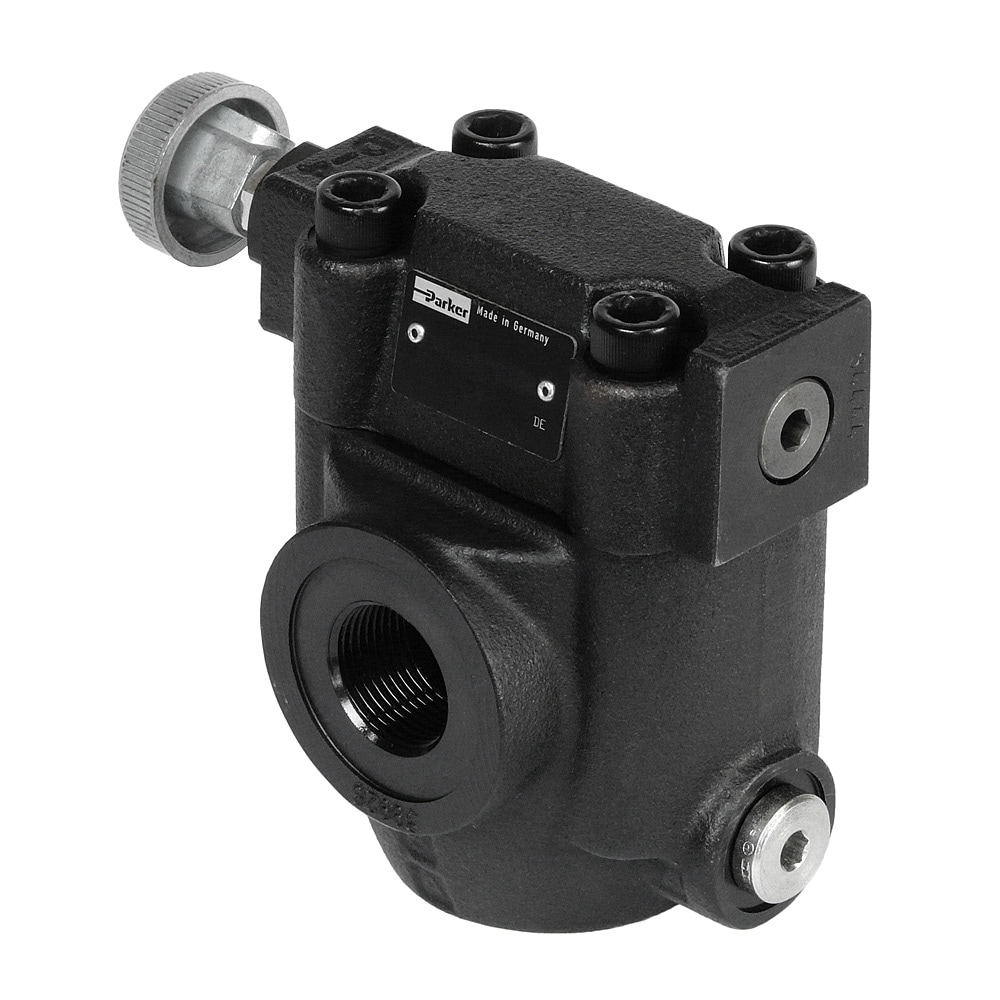

Pilot Operated Pressure Relief Valve, In-line Mounting - Series R4V / R4V*P2 Pilot Operated Pressure Relief Valve, In-line Mounting - Series R4V / R4V*P2 Pilot Operated Pressure Relief Valve, In-line Mounting - Series R4V / R4V*P2 Pilot Operated Pressure Relief Valve, In-line Mounting - Series R4V / R4V*P2

Pilot Operated Pressure Relief Valve, In-line Mounting - Series R4V / R4V*P2

Where to Buy

Parker pilot operated pressure relief valves for in-line mounting series R4V provide an outstanding constant pressure behaviour. Series R4V*P2 enables a continuous pressure adjustment by the additional proportional unit.

Technical Specifications

  • Operation Type: Pilot
  • Maximum Operating Pressure: Ports A, X 350; port B, Y 30 bar
  • Mounting Type: Pipe mounting
  • Product Series: Pressure valve
  • Actuation Type: Manual, Solenoid
  • Maximum Flow Rate: N/A
  • Flow Rate: Depending on size, 60 - 450 L/min
  • Maximum Operating Temperature: 60 °C
  • Minimum Operating Temperature: -20 °C
  • Seal Material: NBR, FPM
  • Body Material: Cast iron
  • For Fluid Type: Hydraulic oil according to DIN 51524, Water glycol
  • Pressure Control Range: 105, 210, 350 bar
  • Weight: 3.2 to 8.4 kg Depending on Size
Safety Warning

Full Product Description

Well known as excellent pressure relief valves, Parker's series R4V and R4V*P2 for in-line mounting work stable across the whole pressure range and thus contribute to a smooth-running operation. Additionally they provide a wide range of options and connections for a versatile use in various applications.

Their design is similar to the subplate mounted R4V series. For single functions – where no manifold blocks are used – the valves can be directly placed in the pipework. R4V and R4V*P2 are available with 2 ports (L-body) or with 3 ports (T-body).

Series R4V*P2 has additionally a proportional unit between the mechanical pilot valve and the main stage. The optimum performance can be achieved in combination with the digital amplifier module PCD00A-400.

Market:
• Industrial

Features/Benefits:
• Wide range of options – suitable for almost every application
• Outstanding constant pressure behavior – supports reliable operation
• Very good pressure/flow behavior – contributes to a high energy efficiency of the system
• Short delivery time – no warehousing necessary
• Pilot operated with manual adjustment
• 2 interfaces
    - L-body (R4R06-G¾", R4R10-G1¼")
    - T-body (R4R03-G½", R4R06-G1")
• 3 pressure stages: 105, 210, 350 bar
• 3 adjustment modes:
    - hand knob
    - acorn nut with lead seal
    - cylinder lock
• With optional vent function

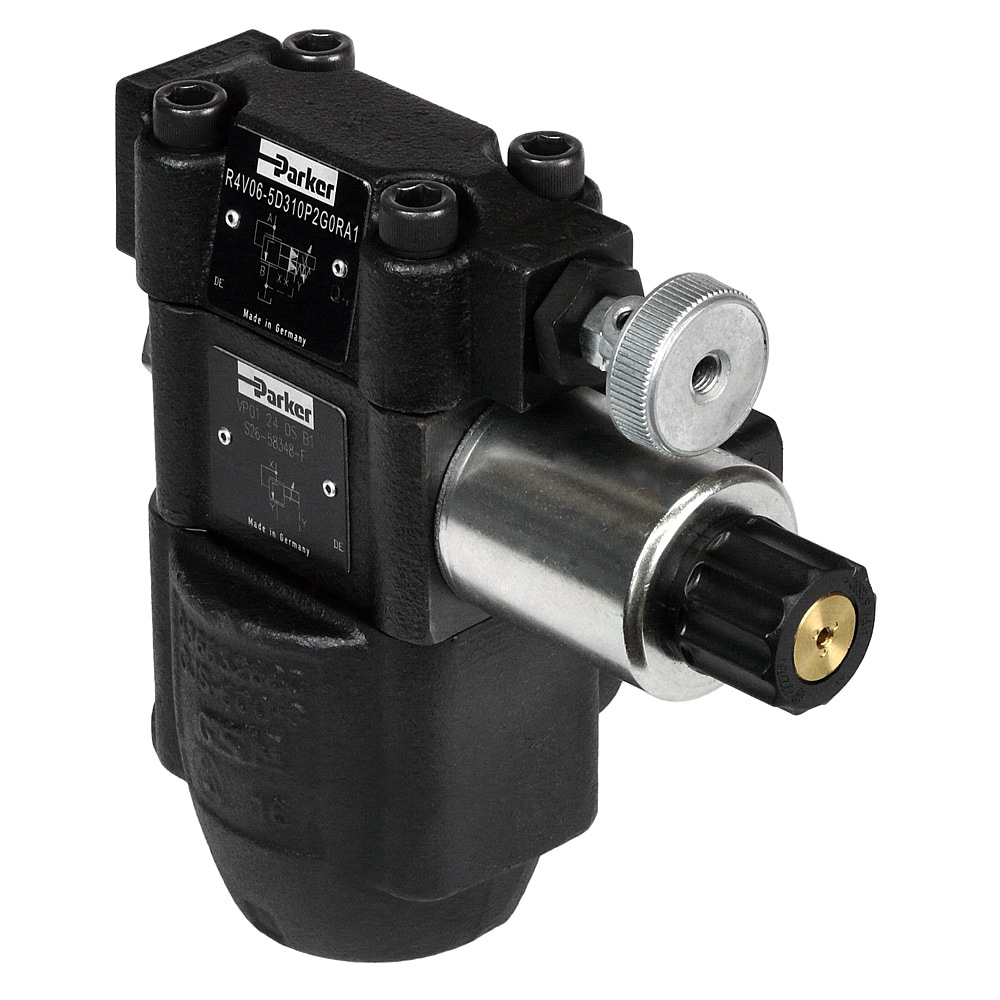

Deviating Features/Benefits Series R4V*P2:
• Continuous adjustment by proportional solenoid
• With mechanical maximum pressure adjustment
• R4V*P2: optimally suited to the digital amplifier module PCD00A-400

Applications:
• Suitable for general hydraulic applications

Related Documents

Literature and Reference Materials
CATALOGUE - Hydraulic Valves Industrial Standard, Offline Version--MSG11-3500/UK
CATALOGUE - Hydraulic Valves Industrial Standard, Online Version--MSG11-3500/UK
CATALOGUE - Pilot Operated Pressure Relief Valve for In-line Mounting Series R4V
CATALOGUE - Pilot Operated Proportional Pressure Relief Valve for In-line Mounting Series R4V*P2
Compliance, Certifications & Safety
CERTIFICATE - DIN ISO 9001:2015 Certificate ISDE
CERTIFICATE - EC Declaration of Conformity 2014/30/EU, (EMV)
CERTIFICATE - Position Paper ISDE 2006/42/EC and EN ISO 13849
×
View Catalog
Share / Email
Print
Products Actuation Type Port Connection Pressure Control Range Pressure Adjustment Control Type Drain Option Switching Option Input Voltage Seal Material Body Type
016-95555-0 Manually NG25 / G1" 210 bar Hand knob Drain line external from pilot head (Y1) Omit Omit NBR Threaded T-body
026-36315-H Manually NG25 / G1" 210 bar Acorn nut with lead seal Drain line internal Vent function: solenoid not activated, unpressurized circulation 24 VDC NBR Threaded T-body
R4V06-5633009G0QA5 Manually NG25 / G1" 210 bar Acorn nut with lead seal Drain line internal Vent function: solenoid not activated, unpressurized circulation 24 VDC FPM Threaded T-body
R4V06-5633009G0RA1 Manually NG25 / G1" 210 bar Acorn nut with lead seal Drain line internal Vent function: solenoid not activated, unpressurized circulation 12 VDC NBR Threaded T-body
026-53241-S Manually NG25 / G1" 210 bar Acorn nut with lead seal Drain line internal Vent function: solenoid not activated, unpressurized circulation 230 VAC / 50 Hz, 240 VAC / 60 Hz NBR Threaded T-body
R4V06-5633011G0QA1 Manually NG25 / G1" 210 bar Acorn nut with lead seal Drain line internal Vent function: solenoid activated, unpressurized circulation 24 VDC NBR Threaded T-body
056-40357-S Manually NG25 / G1" 210 bar Acorn nut with lead seal Drain line internal Vent function: solenoid activated, unpressurized circulation 230 VAC / 50 Hz, 240 VAC / 60 Hz NBR Threaded T-body
016-92081-0 Manually NG25 / G1" 210 bar Acorn nut with lead seal Drain line internal Omit Omit NBR Threaded T-body
R4V06-56330A5 Manually NG25 / G1" 210 bar Acorn nut with lead seal Drain line internal Omit Omit FPM Threaded T-body
026-35623-0 Manually NG25 / G1" 210 bar Acorn nut with lead seal Drain line external from pilot head (Y1) Omit Omit NBR Threaded T-body
R4V06-56332P2G0RA5 Proportional NG25 / G1" 210 bar Acorn nut with lead seal Drain line external from pilot head (Y1) With mechanical maximum pressure adjustment 12 VDC 12 VDC FPM Threaded T-body
R4V06-5634009G0QA1 Manually NG25 / G1" 210 bar Cylinder lock Drain line internal Vent function: solenoid not activated, unpressurized circulation 24 VDC NBR Threaded T-body
026-36565-H Manually NG25 / G1" 350 bar Hand knob Drain line internal Vent function: solenoid not activated, unpressurized circulation 24 VDC NBR Threaded T-body
R4V06-5651009GAGA1 Manually NG25 / G1" 350 bar Hand knob Drain line internal Vent function: solenoid not activated, unpressurized circulation 205 VDC NBR Threaded T-body
026-41086-B Manually NG25 / G1" 350 bar Hand knob Drain line internal Vent function: solenoid not activated, unpressurized circulation 110 VAC / 50 Hz, 120 VAC / 60Hz NBR Threaded T-body
026-41086-U Manually NG25 / G1" 350 bar Hand knob Drain line internal Vent function: solenoid not activated, unpressurized circulation 230 VAC / 50 Hz, 240 VAC / 60 Hz NBR Threaded T-body
026-46233-H Manually NG25 / G1" 350 bar Hand knob Drain line internal Vent function: solenoid activated, unpressurized circulation 24 VDC NBR Threaded T-body
R4V06-5651011W31A1 Manually NG25 / G1" 350 bar Hand knob Drain line internal Vent function: solenoid activated, unpressurized circulation 230 VAC / 50 Hz, 240 VAC / 60 Hz NBR Threaded T-body
016-81033-0 Manually NG25 / G1" 350 bar Hand knob Drain line internal Omit Omit NBR Threaded T-body
016-81033-5 Manually NG25 / G1" 350 bar Hand knob Drain line internal Omit Omit FPM Threaded T-body
R4V06-56512A1 Manually NG25 / G1" 350 bar Hand knob Drain line external from pilot head (Y1) Omit Omit NBR Threaded T-body
R4V06-56512P2G0RA1 Proportional NG25 / G1" 350 bar Hand knob Drain line external from pilot head (Y1) With mechanical maximum pressure adjustment 12 VDC 12 VDC NBR Threaded T-body
026-36522-H Manually NG25 / G1" 350 bar Acorn nut with lead seal Drain line internal Vent function: solenoid not activated, unpressurized circulation 24 VDC NBR Threaded T-body
R4V06-5653011G0QA1 Manually NG25 / G1" 350 bar Acorn nut with lead seal Drain line internal Vent function: solenoid activated, unpressurized circulation 24 VDC NBR Threaded T-body
016-95546-0 Manually NG25 / G1" 350 bar Acorn nut with lead seal Drain line internal Omit Omit NBR Threaded T-body
R4V06-56530A5 Manually NG25 / G1" 350 bar Acorn nut with lead seal Drain line internal Omit Omit FPM Threaded T-body
R4V06-56530P2G0RA1 Proportional NG25 / G1" 350 bar Acorn nut with lead seal Drain line internal With mechanical maximum pressure adjustment 12 VDC 12 VDC NBR Threaded T-body
R4V06-56530P2G0RA5 Proportional NG25 / G1" 350 bar Acorn nut with lead seal Drain line internal With mechanical maximum pressure adjustment 12 VDC 12 VDC FPM Threaded T-body
026-65499-H Manually NG25 / G1" 350 bar Acorn nut with lead seal Drain line external from pilot head (Y1) Vent function: solenoid not activated, unpressurized circulation 24 VDC NBR Threaded T-body
016-95970-0 Manually NG25 / G1" 350 bar Acorn nut with lead seal Drain line external from pilot head (Y1) Omit Omit NBR Threaded T-body
026-30754-G Proportional NG25 / G1" 350 bar Acorn nut with lead seal Drain line external from pilot head (Y1) With mechanical maximum pressure adjustment 12 VDC 12 VDC NBR Threaded T-body
R4V06-56532P2G0RA5 Proportional NG25 / G1" 350 bar Acorn nut with lead seal Drain line external from pilot head (Y1) With mechanical maximum pressure adjustment 12 VDC 12 VDC FPM Threaded T-body
R4V06-5654009G0QA1 Manually NG25 / G1" 350 bar Cylinder lock Drain line internal Vent function: solenoid not activated, unpressurized circulation 24 VDC NBR Threaded T-body
R4V06-5D332P2G0RA1 Proportional NG25 / G1" 210 bar Acorn nut with lead seal Drain line external from pilot head (Y1) With mechanical maximum pressure adjustment 12 VDC 12 VDC NBR Threaded L-body
R4V06-5D510P2G0RA1 Proportional NG25 / G1" 350 bar Hand knob Drain line internal With mechanical maximum pressure adjustment 12 VDC 12 VDC NBR Threaded L-body
026-71835-G Proportional NG25 / G1" 350 bar Hand knob Drain line external from pilot head (Y1) With mechanical maximum pressure adjustment 12 VDC 12 VDC NBR Threaded L-body
R4V06-5D530P2G0RA1 Proportional NG25 / G1" 350 bar Acorn nut with lead seal Drain line internal With mechanical maximum pressure adjustment 12 VDC 12 VDC NBR Threaded L-body
R4V06-5D532P2G0RA1 Proportional NG25 / G1" 350 bar Acorn nut with lead seal Drain line external from pilot head (Y1) With mechanical maximum pressure adjustment 12 VDC 12 VDC NBR Threaded L-body
026-71434-G Proportional NG32 / G1 1/4" 105 bar Acorn nut with lead seal Drain line external from pilot head (Y1) With mechanical maximum pressure adjustment 12 VDC 12 VDC NBR Threaded L-body
026-66713-G Proportional NG32 / G1 1/4" 210 bar Hand knob Drain line external from pilot head (Y1) With mechanical maximum pressure adjustment 12 VDC 12 VDC NBR Threaded L-body
R4V10-5D510P2G0RA5 Proportional NG32 / G1 1/4" 350 bar Hand knob Drain line internal With mechanical maximum pressure adjustment 12 VDC 12 VDC FPM Threaded L-body
026-65572-G Proportional NG32 / G1 1/4" 350 bar Hand knob Drain line external from pilot head (Y1) With mechanical maximum pressure adjustment 12 VDC 12 VDC NBR Threaded L-body
056-40639-G Proportional NG32 / G1 1/4" 350 bar Acorn nut with lead seal Drain line internal With mechanical maximum pressure adjustment 12 VDC 12 VDC NBR Threaded L-body
056-40312-G Proportional NG32 / G1 1/4" 350 bar Acorn nut with lead seal Drain line external from pilot head (Y1) With mechanical maximum pressure adjustment 12 VDC 12 VDC NBR Threaded L-body
R4V03-5611009W30A1 Manually NG10 / G1/2" 105 bar Hand knob Drain line internal Vent function: solenoid not activated, unpressurized circulation 110 VAC / 50 Hz, 120 VAC / 60Hz NBR Threaded T-body
026-56992-H Manually NG10 / G1/2" 105 bar Hand knob Drain line internal Vent function: solenoid activated, unpressurized circulation 24 VDC NBR Threaded T-body
016-81158-0 Manually NG10 / G1/2" 105 bar Hand knob Drain line internal Omit Omit NBR Threaded T-body
016-88800-0 Manually NG10 / G1/2" 105 bar Hand knob Drain line internal Omit Omit FPM Threaded T-body
R4V03-56110P2G0RA5 Proportional NG10 / G1/2" 105 bar Hand knob Drain line internal With mechanical maximum pressure adjustment 12 VDC 12 VDC FPM Threaded T-body
026-71469-B Manually NG10 / G1/2" 105 bar Hand knob Drain line external from pilot head (Y1) Vent function: solenoid not activated, unpressurized circulation 110 VAC / 50 Hz, 120 VAC / 60Hz NBR Threaded T-body
016-87108-0 Manually NG10 / G1/2" 105 bar Hand knob Drain line external from pilot head (Y1) Omit Omit NBR Threaded T-body
R4V03-56112P2G0RA1 Proportional NG10 / G1/2" 105 bar Hand knob Drain line external from pilot head (Y1) With mechanical maximum pressure adjustment 12 VDC 12 VDC NBR Threaded T-body
R4V03-5613009G0QA1 Manually NG10 / G1/2" 105 bar Acorn nut with lead seal Drain line internal Vent function: solenoid not activated, unpressurized circulation 24 VDC NBR Threaded T-body
026-36164-A Manually NG10 / G1/2" 105 bar Acorn nut with lead seal Drain line internal Vent function: solenoid not activated, unpressurized circulation 205 VDC NBR Threaded T-body
R4V03-5613009W31A1 Manually NG10 / G1/2" 105 bar Acorn nut with lead seal Drain line internal Vent function: solenoid not activated, unpressurized circulation 230 VAC / 50 Hz, 240 VAC / 60 Hz NBR Threaded T-body
016-85740-0 Manually NG10 / G1/2" 105 bar Acorn nut with lead seal Drain line internal Omit Omit NBR Threaded T-body
R4V03-56130P2G0RA1 Proportional NG10 / G1/2" 105 bar Acorn nut with lead seal Drain line internal With mechanical maximum pressure adjustment 12 VDC 12 VDC NBR Threaded T-body
016-85979-0 Manually NG10 / G1/2" 105 bar Acorn nut with lead seal Drain line external from pilot head (Y1) Omit Omit NBR Threaded T-body
026-99560-G Proportional NG10 / G1/2" 105 bar Acorn nut with lead seal Drain line external from pilot head (Y1) With mechanical maximum pressure adjustment 12 VDC 12 VDC NBR Threaded T-body
026-36165-H Manually NG10 / G1/2" 210 bar Hand knob Drain line internal Vent function: solenoid not activated, unpressurized circulation 24 VDC NBR Threaded T-body
026-36166-B Manually NG10 / G1/2" 210 bar Hand knob Drain line internal Vent function: solenoid not activated, unpressurized circulation 110 VAC / 50 Hz, 120 VAC / 60Hz NBR Threaded T-body
026-36166-U Manually NG10 / G1/2" 210 bar Hand knob Drain line internal Vent function: solenoid not activated, unpressurized circulation 230 VAC / 50 Hz, 240 VAC / 60 Hz NBR Threaded T-body
016-84618-0 Manually NG10 / G1/2" 210 bar Hand knob Drain line internal Omit Omit NBR Threaded T-body
R4V03-56310A5 Manually NG10 / G1/2" 210 bar Hand knob Drain line internal Omit Omit FPM Threaded T-body
R4V03-5631209G0QA1 Manually NG10 / G1/2" 210 bar Hand knob Drain line external from pilot head (Y1) Vent function: solenoid not activated, unpressurized circulation 24 VDC NBR Threaded T-body
R4V03-56312A1 Manually NG10 / G1/2" 210 bar Hand knob Drain line external from pilot head (Y1) Omit Omit NBR Threaded T-body
R4V03-56312A5 Manually NG10 / G1/2" 210 bar Hand knob Drain line external from pilot head (Y1) Omit Omit FPM Threaded T-body
026-65867-G Proportional NG10 / G1/2" 210 bar Hand knob Drain line external from pilot head (Y1) With mechanical maximum pressure adjustment 12 VDC 12 VDC NBR Threaded T-body
026-36168-H Manually NG10 / G1/2" 210 bar Acorn nut with lead seal Drain line internal Vent function: solenoid not activated, unpressurized circulation 24 VDC NBR Threaded T-body
026-36168-G Manually NG10 / G1/2" 210 bar Acorn nut with lead seal Drain line internal Vent function: solenoid not activated, unpressurized circulation 12 VDC NBR Threaded T-body
R4V03-5633011G0QA1 Manually NG10 / G1/2" 210 bar Acorn nut with lead seal Drain line internal Vent function: solenoid activated, unpressurized circulation 24 VDC NBR Threaded T-body
016-87241-0 Manually NG10 / G1/2" 210 bar Acorn nut with lead seal Drain line internal Omit Omit NBR Threaded T-body
R4V03-56330A5 Manually NG10 / G1/2" 210 bar Acorn nut with lead seal Drain line internal Omit Omit FPM Threaded T-body
R4V03-56330P2G0RA1 Proportional NG10 / G1/2" 210 bar Acorn nut with lead seal Drain line internal With mechanical maximum pressure adjustment 12 VDC 12 VDC NBR Threaded T-body
026-20866-0 Manually NG10 / G1/2" 210 bar Acorn nut with lead seal Drain line external from pilot head (Y1) Omit Omit NBR Threaded T-body
026-70378-G Proportional NG10 / G1/2" 210 bar Acorn nut with lead seal Drain line external from pilot head (Y1) With mechanical maximum pressure adjustment 12 VDC 12 VDC NBR Threaded T-body
R4V03-56340A1 Manually NG10 / G1/2" 210 bar Cylinder lock Drain line internal Omit Omit NBR Threaded T-body
026-36169-H Manually NG10 / G1/2" 350 bar Hand knob Drain line internal Vent function: solenoid not activated, unpressurized circulation 24 VDC NBR Threaded T-body
R4V03-5651009G0QA5 Manually NG10 / G1/2" 350 bar Hand knob Drain line internal Vent function: solenoid not activated, unpressurized circulation 24 VDC FPM Threaded T-body
026-36170-B Manually NG10 / G1/2" 350 bar Hand knob Drain line internal Vent function: solenoid not activated, unpressurized circulation 110 VAC / 50 Hz, 120 VAC / 60Hz NBR Threaded T-body
R4V03-5651011G0QA1 Manually NG10 / G1/2" 350 bar Hand knob Drain line internal Vent function: solenoid activated, unpressurized circulation 24 VDC NBR Threaded T-body
016-81083-0 Manually NG10 / G1/2" 350 bar Hand knob Drain line internal Omit Omit NBR Threaded T-body
016-85214-0 Manually NG10 / G1/2" 350 bar Hand knob Drain line internal Omit Omit FPM Threaded T-body
R4V03-56510P2G0RA1 Proportional NG10 / G1/2" 350 bar Hand knob Drain line internal With mechanical maximum pressure adjustment 12 VDC 12 VDC NBR Threaded T-body
026-57958-H Manually NG10 / G1/2" 350 bar Hand knob Drain line external from pilot head (Y1) Vent function: solenoid activated, unpressurized circulation 24 VDC NBR Threaded T-body
016-81154-0 Manually NG10 / G1/2" 350 bar Hand knob Drain line external from pilot head (Y1) Omit Omit NBR Threaded T-body
R4V03-56512P2G0RA1 Proportional NG10 / G1/2" 350 bar Hand knob Drain line external from pilot head (Y1) With mechanical maximum pressure adjustment 12 VDC 12 VDC NBR Threaded T-body
026-96788-G Proportional NG10 / G1/2" 350 bar Hand knob Drain line external from pilot head (Y1) With mechanical maximum pressure adjustment 12 VDC 12 VDC FPM Threaded T-body
026-36171-H Manually NG10 / G1/2" 350 bar Acorn nut with lead seal Drain line internal Vent function: solenoid not activated, unpressurized circulation 24 VDC NBR Threaded T-body
R4V03-5653009G0QA5 Manually NG10 / G1/2" 350 bar Acorn nut with lead seal Drain line internal Vent function: solenoid not activated, unpressurized circulation 24 VDC FPM Threaded T-body
026-57236-H Manually NG10 / G1/2" 350 bar Acorn nut with lead seal Drain line internal Vent function: solenoid activated, unpressurized circulation 24 VDC NBR Threaded T-body
016-81496-0 Manually NG10 / G1/2" 350 bar Acorn nut with lead seal Drain line internal Omit Omit NBR Threaded T-body
016-81496-5 Manually NG10 / G1/2" 350 bar Acorn nut with lead seal Drain line internal Omit Omit FPM Threaded T-body
R4V03-56530P2G0RA1 Proportional NG10 / G1/2" 350 bar Acorn nut with lead seal Drain line internal With mechanical maximum pressure adjustment 12 VDC 12 VDC NBR Threaded T-body
016-84601-0 Manually NG10 / G1/2" 350 bar Acorn nut with lead seal Drain line external from pilot head (Y1) Omit Omit NBR Threaded T-body
026-38489-G Proportional NG10 / G1/2" 350 bar Acorn nut with lead seal Drain line external from pilot head (Y1) With mechanical maximum pressure adjustment 12 VDC 12 VDC NBR Threaded T-body
R4V06-5611009G0QA1 Manually NG25 / G1" 105 bar Hand knob Drain line internal Vent function: solenoid not activated, unpressurized circulation 24 VDC NBR Threaded T-body
R4V06-5611011G0QA1 Manually NG25 / G1" 105 bar Hand knob Drain line internal Vent function: solenoid activated, unpressurized circulation 24 VDC NBR Threaded T-body
016-81045-0 Manually NG25 / G1" 105 bar Hand knob Drain line internal Omit Omit NBR Threaded T-body
026-20638-0 Manually NG25 / G1" 105 bar Hand knob Drain line external from pilot head (Y1) Omit Omit NBR Threaded T-body
R4V06-5613009G0QA1 Manually NG25 / G1" 105 bar Acorn nut with lead seal Drain line internal Vent function: solenoid not activated, unpressurized circulation 24 VDC NBR Threaded T-body
R4V06-5613009GARA1 Manually NG25 / G1" 105 bar Acorn nut with lead seal Drain line internal Vent function: solenoid not activated, unpressurized circulation 98 VDC NBR Threaded T-body
026-43402-U Manually NG25 / G1" 105 bar Acorn nut with lead seal Drain line internal Vent function: solenoid not activated, unpressurized circulation 230 VAC / 50 Hz, 240 VAC / 60 Hz NBR Threaded T-body
026-20218-0 Manually NG25 / G1" 105 bar Acorn nut with lead seal Drain line internal Omit Omit NBR Threaded T-body
026-20218-5 Manually NG25 / G1" 105 bar Acorn nut with lead seal Drain line internal Omit Omit FPM Threaded T-body
R4V06-56130P2G0RA1 Proportional NG25 / G1" 105 bar Acorn nut with lead seal Drain line internal With mechanical maximum pressure adjustment 12 VDC 12 VDC NBR Threaded T-body
026-37700-G Proportional NG25 / G1" 105 bar Acorn nut with lead seal Drain line external from pilot head (Y1) With mechanical maximum pressure adjustment 12 VDC 12 VDC NBR Threaded T-body
026-36347-H Manually NG25 / G1" 210 bar Hand knob Drain line internal Vent function: solenoid not activated, unpressurized circulation 24 VDC NBR Threaded T-body
R4V06-5631009W30A1 Manually NG25 / G1" 210 bar Hand knob Drain line internal Vent function: solenoid not activated, unpressurized circulation 110 VAC / 50 Hz, 120 VAC / 60Hz NBR Threaded T-body
026-36398-U Manually NG25 / G1" 210 bar Hand knob Drain line internal Vent function: solenoid not activated, unpressurized circulation 230 VAC / 50 Hz, 240 VAC / 60 Hz NBR Threaded T-body
016-85556-0 Manually NG25 / G1" 210 bar Hand knob Drain line internal Omit Omit NBR Threaded T-body
016-85556-5 Manually NG25 / G1" 210 bar Hand knob Drain line internal Omit Omit FPM Threaded T-body
R4V06-56310P2G0RA1 Proportional NG25 / G1" 210 bar Hand knob Drain line internal With mechanical maximum pressure adjustment 12 VDC 12 VDC NBR Threaded T-body
026-36150-H Manually NG10 / G1/2" 105 bar Hand knob Drain line internal Vent function: solenoid not activated, unpressurized circulation 24 VDC NBR Threaded T-body
R4V03-5611011W30A1 Manually NG10 / G1/2" 105 bar Hand knob Drain line internal Vent function: solenoid activated, unpressurized circulation 110 VAC / 50 Hz, 120 VAC / 60Hz NBR Threaded T-body
R4V03-5631209W31A1 Manually NG10 / G1/2" 210 bar Hand knob Drain line external from pilot head (Y1) Vent function: solenoid not activated, unpressurized circulation 230 VAC / 50 Hz, 240 VAC / 60 Hz NBR Threaded T-body
R4V03-5633009G0QA1031 Manually NG10 / G1/2" 210 bar Acorn nut with lead seal Drain line internal Vent function with slow unloading: solenoid not activated, unpressurized circulation 24 VDC NBR Threaded T-body
R4V03-5651011W30A1 Manually NG10 / G1/2" 350 bar Hand knob Drain line internal Vent function: solenoid activated, unpressurized circulation 110 VAC / 50 Hz, 120 VAC / 60Hz NBR Threaded T-body
R4V06-56510P2G0RA1 Proportional NG25 / G1" 350 bar Hand knob Drain line internal With mechanical maximum pressure adjustment 12 VDC 12 VDC NBR Threaded T-body
R4V06-5D31209G0QA1 Manually NG25 / G1" 210 bar Hand knob Drain line external from pilot head (Y1) Vent function: solenoid not activated, unpressurized circulation 24 VDC NBR Threaded L-body
026-57042-B Manually NG25 / G1" 210 bar Hand knob Drain line external from pilot head (Y1) Vent function: solenoid not activated, unpressurized circulation 110 VAC / 50 Hz, 120 VAC / 60Hz NBR Threaded L-body
016-92402-0 Manually NG25 / G1" 210 bar Hand knob Drain line external from pilot head (Y1) Omit Omit NBR Threaded L-body
R4V06-5D33009G0QA1 Manually NG25 / G1" 210 bar Acorn nut with lead seal Drain line internal Vent function: solenoid not activated, unpressurized circulation 24 VDC NBR Threaded L-body
R4V06-5D33009G0QA1031 Manually NG25 / G1" 210 bar Acorn nut with lead seal Drain line internal Vent function with slow unloading: solenoid not activated, unpressurized circulation 24 VDC NBR Threaded L-body
R4V06-5D33009W31A1 Manually NG25 / G1" 210 bar Acorn nut with lead seal Drain line internal Vent function: solenoid not activated, unpressurized circulation 230 VAC / 50 Hz, 240 VAC / 60 Hz NBR Threaded L-body
016-95058-0 Manually NG25 / G1" 210 bar Acorn nut with lead seal Drain line internal Omit Omit NBR Threaded L-body
R4V06-5D33209G0QA1 Manually NG25 / G1" 210 bar Acorn nut with lead seal Drain line external from pilot head (Y1) Vent function: solenoid not activated, unpressurized circulation 24 VDC NBR Threaded L-body
026-99407-U Manually NG25 / G1" 210 bar Acorn nut with lead seal Drain line external from pilot head (Y1) Vent function: solenoid not activated, unpressurized circulation 230 VAC / 50 Hz, 240 VAC / 60 Hz NBR Threaded L-body
026-36794-H Manually NG25 / G1" 350 bar Hand knob Drain line internal Vent function: solenoid not activated, unpressurized circulation 24 VDC NBR Threaded L-body
R4V06-5D51009G0QA5 Manually NG25 / G1" 350 bar Hand knob Drain line internal Vent function: solenoid not activated, unpressurized circulation 24 VDC FPM Threaded L-body
026-36794-G Manually NG25 / G1" 350 bar Hand knob Drain line internal Vent function: solenoid not activated, unpressurized circulation 12 VDC NBR Threaded L-body
026-36317-B Manually NG25 / G1" 350 bar Hand knob Drain line internal Vent function: solenoid not activated, unpressurized circulation 110 VAC / 50 Hz, 120 VAC / 60Hz NBR Threaded L-body
R4V06-5D51009W30A5 Manually NG25 / G1" 350 bar Hand knob Drain line internal Vent function: solenoid not activated, unpressurized circulation 110 VAC / 50 Hz, 120 VAC / 60Hz FPM Threaded L-body
026-36317-U Manually NG25 / G1" 350 bar Hand knob Drain line internal Vent function: solenoid not activated, unpressurized circulation 230 VAC / 50 Hz, 240 VAC / 60 Hz NBR Threaded L-body
016-81029-0 Manually NG25 / G1" 350 bar Hand knob Drain line internal Omit Omit NBR Threaded L-body
R4V06-5D51209W30A1 Manually NG25 / G1" 350 bar Hand knob Drain line external from pilot head (Y1) Vent function: solenoid not activated, unpressurized circulation 110 VAC / 50 Hz, 120 VAC / 60Hz NBR Threaded L-body
026-99452-B Manually NG25 / G1" 350 bar Hand knob Drain line external from pilot head (Y1) Vent function: solenoid not activated, unpressurized circulation 110 VAC / 50 Hz, 120 VAC / 60Hz FPM Threaded L-body
R4V06-5D51211W31A1 Manually NG25 / G1" 350 bar Hand knob Drain line external from pilot head (Y1) Vent function: solenoid activated, unpressurized circulation 230 VAC / 50 Hz, 240 VAC / 60 Hz NBR Threaded L-body
016-81028-0 Manually NG25 / G1" 350 bar Hand knob Drain line external from pilot head (Y1) Omit Omit NBR Threaded L-body
026-36658-H Manually NG25 / G1" 350 bar Acorn nut with lead seal Drain line internal Vent function: solenoid not activated, unpressurized circulation 24 VDC NBR Threaded L-body
026-41882-H Manually NG32 / G1 1/4" 210 bar Hand knob Drain line internal Vent function: solenoid not activated, unpressurized circulation 24 VDC NBR Threaded L-body
026-41882-G Manually NG32 / G1 1/4" 210 bar Hand knob Drain line internal Vent function: solenoid not activated, unpressurized circulation 12 VDC NBR Threaded L-body
026-46747-B Manually NG32 / G1 1/4" 210 bar Hand knob Drain line internal Vent function: solenoid not activated, unpressurized circulation 110 VAC / 50 Hz, 120 VAC / 60Hz NBR Threaded L-body
R4V10-5D31009W31A1 Manually NG32 / G1 1/4" 210 bar Hand knob Drain line internal Vent function: solenoid not activated, unpressurized circulation 230 VAC / 50 Hz, 240 VAC / 60 Hz NBR Threaded L-body
R4V10-5D31011G0QA1 Manually NG32 / G1 1/4" 210 bar Hand knob Drain line internal Vent function: solenoid activated, unpressurized circulation 24 VDC NBR Threaded L-body
016-84599-0 Manually NG32 / G1 1/4" 210 bar Hand knob Drain line internal Omit Omit NBR Threaded L-body
R4V10-5D310P2G0RA1 Proportional NG32 / G1 1/4" 210 bar Hand knob Drain line internal With mechanical maximum pressure adjustment 12 VDC 12 VDC NBR Threaded L-body
026-42995-H Manually NG32 / G1 1/4" 210 bar Hand knob Drain line external from pilot head (Y1) Vent function: solenoid not activated, unpressurized circulation 24 VDC NBR Threaded L-body
026-20675-0 Manually NG32 / G1 1/4" 210 bar Hand knob Drain line external from pilot head (Y1) Omit Omit NBR Threaded L-body
R4V10-5D33009G0QA1 Manually NG32 / G1 1/4" 210 bar Acorn nut with lead seal Drain line internal Vent function: solenoid not activated, unpressurized circulation 24 VDC NBR Threaded L-body
R4V10-5D33009G0QA1031 Manually NG32 / G1 1/4" 210 bar Acorn nut with lead seal Drain line internal Vent function with slow unloading: solenoid not activated, unpressurized circulation 24 VDC NBR Threaded L-body
026-20987-0 Manually NG32 / G1 1/4" 210 bar Acorn nut with lead seal Drain line internal Omit Omit NBR Threaded L-body
R4V10-5D33209G0QA1 Manually NG32 / G1 1/4" 210 bar Acorn nut with lead seal Drain line external from pilot head (Y1) Vent function: solenoid not activated, unpressurized circulation 24 VDC NBR Threaded L-body
026-46417-0 Manually NG32 / G1 1/4" 210 bar Acorn nut with lead seal Drain line external from pilot head (Y1) Omit Omit NBR Threaded L-body
026-36299-H Manually NG32 / G1 1/4" 350 bar Hand knob Drain line internal Vent function: solenoid not activated, unpressurized circulation 24 VDC NBR Threaded L-body
026-38419-H Manually NG32 / G1 1/4" 350 bar Hand knob Drain line internal Vent function with slow unloading: solenoid not activated, unpressurized circulation 24 VDC NBR Threaded L-body
026-36299-G Manually NG32 / G1 1/4" 350 bar Hand knob Drain line internal Vent function: solenoid not activated, unpressurized circulation 12 VDC NBR Threaded L-body
R4V10-5D51009GAGA1 Manually NG32 / G1 1/4" 350 bar Hand knob Drain line internal Vent function: solenoid not activated, unpressurized circulation 205 VDC NBR Threaded L-body
R4V10-5D51009GARA1 Manually NG32 / G1 1/4" 350 bar Hand knob Drain line internal Vent function: solenoid not activated, unpressurized circulation 98 VDC NBR Threaded L-body
R4V10-5D51009W30A1 Manually NG32 / G1 1/4" 350 bar Hand knob Drain line internal Vent function: solenoid not activated, unpressurized circulation 110 VAC / 50 Hz, 120 VAC / 60Hz NBR Threaded L-body
026-36404-U Manually NG32 / G1 1/4" 350 bar Hand knob Drain line internal Vent function: solenoid not activated, unpressurized circulation 230 VAC / 50 Hz, 240 VAC / 60 Hz NBR Threaded L-body
R4V10-5D51011G0QA1 Manually NG32 / G1 1/4" 350 bar Hand knob Drain line internal Vent function: solenoid activated, unpressurized circulation 24 VDC NBR Threaded L-body
R4V10-5D51011GAGA1 Manually NG32 / G1 1/4" 350 bar Hand knob Drain line internal Vent function: solenoid activated, unpressurized circulation 205 VDC NBR Threaded L-body
R4V10-5D51011W31A1 Manually NG32 / G1 1/4" 350 bar Hand knob Drain line internal Vent function: solenoid activated, unpressurized circulation 230 VAC / 50 Hz, 240 VAC / 60 Hz NBR Threaded L-body
016-81053-0 Manually NG32 / G1 1/4" 350 bar Hand knob Drain line internal Omit Omit NBR Threaded L-body
026-36405-H Manually NG32 / G1 1/4" 350 bar Hand knob Drain line external from pilot head (Y1) Vent function: solenoid not activated, unpressurized circulation 24 VDC NBR Threaded L-body
R4V10-5D51211G0QA1 Manually NG32 / G1 1/4" 350 bar Hand knob Drain line external from pilot head (Y1) Vent function: solenoid activated, unpressurized circulation 24 VDC NBR Threaded L-body
016-88891-0 Manually NG32 / G1 1/4" 350 bar Hand knob Drain line external from pilot head (Y1) Omit Omit NBR Threaded L-body
R4V10-5D53009G0QA1 Manually NG32 / G1 1/4" 350 bar Acorn nut with lead seal Drain line internal Vent function: solenoid not activated, unpressurized circulation 24 VDC NBR Threaded L-body
R4V10-5D53009G0QA1031 Manually NG32 / G1 1/4" 350 bar Acorn nut with lead seal Drain line internal Vent function with slow unloading: solenoid not activated, unpressurized circulation 24 VDC NBR Threaded L-body
026-71384-U Manually NG32 / G1 1/4" 350 bar Acorn nut with lead seal Drain line internal Vent function: solenoid activated, unpressurized circulation 230 VAC / 50 Hz, 240 VAC / 60 Hz NBR Threaded L-body
016-95238-0 Manually NG32 / G1 1/4" 350 bar Acorn nut with lead seal Drain line internal Omit Omit NBR Threaded L-body
R4V10-5D53209G0QA1 Manually NG32 / G1 1/4" 350 bar Acorn nut with lead seal Drain line external from pilot head (Y1) Vent function: solenoid not activated, unpressurized circulation 24 VDC NBR Threaded L-body
R4V10-5D53209G0QA5 Manually NG32 / G1 1/4" 350 bar Acorn nut with lead seal Drain line external from pilot head (Y1) Vent function: solenoid not activated, unpressurized circulation 24 VDC FPM Threaded L-body
026-27946-0 Manually NG32 / G1 1/4" 350 bar Acorn nut with lead seal Drain line external from pilot head (Y1) Omit Omit NBR Threaded L-body
R4V10-5D540A1 Manually NG32 / G1 1/4" 350 bar Cylinder lock Drain line internal Omit Omit NBR Threaded L-body
026-47461-H Manually NG25 / G1" 105 bar Hand knob Drain line internal Vent function with slow unloading: solenoid not activated, unpressurized circulation 24 VDC NBR Threaded T-body
R4V06-56130P2G0RA5 Proportional NG25 / G1" 105 bar Acorn nut with lead seal Drain line internal With mechanical maximum pressure adjustment 12 VDC 12 VDC FPM Threaded T-body
R4V06-56132A1 Manually NG25 / G1" 105 bar Acorn nut with lead seal Drain line external from pilot head (Y1) Omit Omit NBR Threaded T-body
026-62072-H Manually NG25 / G1" 210 bar Hand knob Drain line internal Vent function with slow unloading: solenoid not activated, unpressurized circulation 24 VDC NBR Threaded T-body
026-43704-H Manually NG25 / G1" 105 bar Hand knob Drain line internal Vent function: solenoid not activated, unpressurized circulation 24 VDC NBR Threaded L-body
R4V06-5D11009W30A1 Manually NG25 / G1" 105 bar Hand knob Drain line internal Vent function: solenoid not activated, unpressurized circulation 110 VAC / 50 Hz, 120 VAC / 60Hz NBR Threaded L-body
016-84738-0 Manually NG25 / G1" 105 bar Hand knob Drain line internal Omit Omit NBR Threaded L-body
016-86434-0 Manually NG25 / G1" 105 bar Hand knob Drain line external from pilot head (Y1) Omit Omit NBR Threaded L-body
R4V06-5D13011G0QA1 Manually NG25 / G1" 105 bar Acorn nut with lead seal Drain line internal Vent function: solenoid activated, unpressurized circulation 24 VDC NBR Threaded L-body
016-88167-0 Manually NG25 / G1" 105 bar Acorn nut with lead seal Drain line internal Omit Omit NBR Threaded L-body
026-57191-0 Manually NG25 / G1" 105 bar Acorn nut with lead seal Drain line external from pilot head (Y1) Omit Omit NBR Threaded L-body
026-36277-H Manually NG25 / G1" 210 bar Hand knob Drain line internal Vent function: solenoid not activated, unpressurized circulation 24 VDC NBR Threaded L-body
026-38160-H Manually NG25 / G1" 210 bar Hand knob Drain line internal Vent function: solenoid not activated, unpressurized circulation 24 VDC FPM Threaded L-body
026-96249-G Manually NG25 / G1" 210 bar Hand knob Drain line internal Vent function with slow unloading: solenoid not activated, unpressurized circulation 12 VDC NBR Threaded L-body
026-36277-G Manually NG25 / G1" 210 bar Hand knob Drain line internal Vent function: solenoid not activated, unpressurized circulation 12 VDC NBR Threaded L-body
R4V06-5D31009GAGA1 Manually NG25 / G1" 210 bar Hand knob Drain line internal Vent function: solenoid not activated, unpressurized circulation 205 VDC NBR Threaded L-body
026-36314-B Manually NG25 / G1" 210 bar Hand knob Drain line internal Vent function: solenoid not activated, unpressurized circulation 110 VAC / 50 Hz, 120 VAC / 60Hz NBR Threaded L-body
R4V06-5D31011G0QA1 Manually NG25 / G1" 210 bar Hand knob Drain line internal Vent function: solenoid activated, unpressurized circulation 24 VDC NBR Threaded L-body
016-84617-0 Manually NG25 / G1" 210 bar Hand knob Drain line internal Omit Omit NBR Threaded L-body
R4V06-5D53009G0QA1031 Manually NG25 / G1" 350 bar Acorn nut with lead seal Drain line internal Vent function with slow unloading: solenoid not activated, unpressurized circulation 24 VDC NBR Threaded L-body
026-36658-G Manually NG25 / G1" 350 bar Acorn nut with lead seal Drain line internal Vent function: solenoid not activated, unpressurized circulation 12 VDC NBR Threaded L-body
R4V06-5D53009W31A1 Manually NG25 / G1" 350 bar Acorn nut with lead seal Drain line internal Vent function: solenoid not activated, unpressurized circulation 230 VAC / 50 Hz, 240 VAC / 60 Hz NBR Threaded L-body
R4V06-5D53011G0QA1 Manually NG25 / G1" 350 bar Acorn nut with lead seal Drain line internal Vent function: solenoid activated, unpressurized circulation 24 VDC NBR Threaded L-body
016-84000-0 Manually NG25 / G1" 350 bar Acorn nut with lead seal Drain line internal Omit Omit NBR Threaded L-body
026-46446-H Manually NG25 / G1" 350 bar Acorn nut with lead seal Drain line external from pilot head (Y1) Vent function: solenoid not activated, unpressurized circulation 24 VDC NBR Threaded L-body
016-84600-0 Manually NG25 / G1" 350 bar Acorn nut with lead seal Drain line external from pilot head (Y1) Omit Omit NBR Threaded L-body
R4V10-5D11009G0QA1 Manually NG32 / G1 1/4" 105 bar Hand knob Drain line internal Vent function: solenoid not activated, unpressurized circulation 24 VDC NBR Threaded L-body
R4V10-5D11009W31A1 Manually NG32 / G1 1/4" 105 bar Hand knob Drain line internal Vent function: solenoid not activated, unpressurized circulation 230 VAC / 50 Hz, 240 VAC / 60 Hz NBR Threaded L-body
016-81052-0 Manually NG32 / G1 1/4" 105 bar Hand knob Drain line internal Omit Omit NBR Threaded L-body
R4V10-5D11209G0QA1 Manually NG32 / G1 1/4" 105 bar Hand knob Drain line external from pilot head (Y1) Vent function: solenoid not activated, unpressurized circulation 24 VDC NBR Threaded L-body
016-84797-0 Manually NG32 / G1 1/4" 105 bar Hand knob Drain line external from pilot head (Y1) Omit Omit NBR Threaded L-body
026-36418-H Manually NG32 / G1 1/4" 105 bar Acorn nut with lead seal Drain line internal Vent function: solenoid not activated, unpressurized circulation 24 VDC NBR Threaded L-body
R4V10-5D13009GARA1 Manually NG32 / G1 1/4" 105 bar Acorn nut with lead seal Drain line internal Vent function: solenoid not activated, unpressurized circulation 98 VDC NBR Threaded L-body
R4V10-5D13009W30A1 Manually NG32 / G1 1/4" 105 bar Acorn nut with lead seal Drain line internal Vent function: solenoid not activated, unpressurized circulation 110 VAC / 50 Hz, 120 VAC / 60Hz NBR Threaded L-body
026-53242-U Manually NG32 / G1 1/4" 105 bar Acorn nut with lead seal Drain line internal Vent function: solenoid not activated, unpressurized circulation 230 VAC / 50 Hz, 240 VAC / 60 Hz NBR Threaded L-body
R4V10-5D13011G0QA1 Manually NG32 / G1 1/4" 105 bar Acorn nut with lead seal Drain line internal Vent function: solenoid activated, unpressurized circulation 24 VDC NBR Threaded L-body
016-92715-0 Manually NG32 / G1 1/4" 105 bar Acorn nut with lead seal Drain line internal Omit Omit NBR Threaded L-body
R4V10-5D13209G0QA1 Manually NG32 / G1 1/4" 105 bar Acorn nut with lead seal Drain line external from pilot head (Y1) Vent function: solenoid not activated, unpressurized circulation 24 VDC NBR Threaded L-body
R4V10-5D13209GAGA1 Manually NG32 / G1 1/4" 105 bar Acorn nut with lead seal Drain line external from pilot head (Y1) Vent function: solenoid not activated, unpressurized circulation 205 VDC NBR Threaded L-body
056-40138-S Manually NG32 / G1 1/4" 105 bar Acorn nut with lead seal Drain line external from pilot head (Y1) Vent function: solenoid not activated, unpressurized circulation 230 VAC / 50 Hz, 240 VAC / 60 Hz NBR Threaded L-body
026-38624-H Manually NG32 / G1 1/4" 105 bar Acorn nut with lead seal Drain line external from pilot head (Y1) Vent function: solenoid activated, unpressurized circulation 24 VDC NBR Threaded L-body
026-46621-0 Manually NG32 / G1 1/4" 105 bar Acorn nut with lead seal Drain line external from pilot head (Y1) Omit Omit NBR Threaded L-body
R4V06-5D312A5 Manually NG25 / G1" 210 bar Hand knob Drain line external from pilot head (Y1) Omit Omit FPM Threaded L-body
016-88503-0 Manually NG25 / G1" 350 bar Hand knob Drain line internal Omit Omit FPM Threaded L-body
R4V06-56110A5 Manually NG25 / G1" 105 bar Hand knob Drain line internal Omit Omit FPM Threaded T-body
R4V10-5D310A5 Manually NG32 / G1 1/4" 210 bar Hand knob Drain line internal Omit Omit FPM Threaded L-body
R4V06-5D530A5 Manually NG25 / G1" 350 bar Acorn nut with lead seal Drain line internal Omit Omit FPM Threaded L-body
016-81052-5 Manually NG32 / G1 1/4" 105 bar Hand knob Drain line internal Omit Omit FPM Threaded L-body
R4V06-5D11009W31A1 Manually NG25 / G1" 105 bar Hand knob Drain line internal Vent function: solenoid not activated, unpressurized circulation 230 VAC / 50 Hz, 240 VAC / 60 Hz NBR Threaded L-body
R4V06-5D31009W31A1 Manually NG25 / G1" 210 bar Hand knob Drain line internal Vent function: solenoid not activated, unpressurized circulation 230 VAC / 50 Hz, 240 VAC / 60 Hz NBR Threaded L-body
R4V03-56310P2G0RA1 Proportional NG10 / G1/2" 210 bar Hand knob Drain line internal With mechanical maximum pressure adjustment 12 VDC 12 VDC NBR Threaded T-body
R4V03-56510P2G0RA5 Proportional NG10 / G1/2" 350 bar Hand knob Drain line internal With mechanical maximum pressure adjustment 12 VDC 12 VDC FPM Threaded T-body
R4V03-56530P2G0RA5 Proportional NG10 / G1/2" 350 bar Acorn nut with lead seal Drain line internal With mechanical maximum pressure adjustment 12 VDC 12 VDC FPM Threaded T-body
R4V06-5D110P2G0RA5 Proportional NG25 / G1" 105 bar Hand knob Drain line internal With mechanical maximum pressure adjustment 12 VDC 12 VDC FPM Threaded L-body
R4V06-5D53011W31A1 Manually NG25 / G1" 350 bar Acorn nut with lead seal Drain line internal Vent function: solenoid activated, unpressurized circulation 230 VAC / 50 Hz, 240 VAC / 60 Hz NBR Threaded L-body
R4V10-5D33009W31A1 Manually NG32 / G1 1/4" 210 bar Acorn nut with lead seal Drain line internal Vent function: solenoid not activated, unpressurized circulation 230 VAC / 50 Hz, 240 VAC / 60 Hz NBR Threaded L-body
R4V06-5D510P2G0RA5 Proportional NG25 / G1" 350 bar Hand knob Drain line internal With mechanical maximum pressure adjustment 12 VDC 12 VDC FPM Threaded L-body
R4V10-5D53011G0QA1 Manually NG32 / G1 1/4" 350 bar Acorn nut with lead seal Drain line internal Vent function: solenoid activated, unpressurized circulation 24 VDC NBR Threaded L-body
R4V06-5651009G0QA5 Manually NG25 / G1" 350 bar Hand knob Drain line internal Vent function: solenoid not activated, unpressurized circulation 24 VDC FPM Threaded T-body
R4V06-5651009W31A5 Manually NG25 / G1" 350 bar Hand knob Drain line internal Vent function: solenoid not activated, unpressurized circulation 230 VAC / 50 Hz, 240 VAC / 60 Hz FPM Threaded T-body
R4V06-5651011W30A1 Manually NG25 / G1" 350 bar Hand knob Drain line internal Vent function: solenoid activated, unpressurized circulation 110 VAC / 50 Hz, 120 VAC / 60Hz NBR Threaded T-body
R4V06-5D110A5 Manually NG25 / G1" 105 bar Hand knob Drain line internal Omit Omit FPM Threaded L-body
R4V06-5D312P2G0RA1 Proportional NG25 / G1" 210 bar Hand knob Drain line external from pilot head (Y1) With mechanical maximum pressure adjustment 12 VDC 12 VDC NBR Threaded L-body
R4V06-5D33211G0QA1 Manually NG25 / G1" 210 bar Acorn nut with lead seal Drain line external from pilot head (Y1) Vent function: solenoid activated, unpressurized circulation 24 VDC NBR Threaded L-body
R4V06-5D332A1 Manually NG25 / G1" 210 bar Acorn nut with lead seal Drain line external from pilot head (Y1) Omit Omit NBR Threaded L-body
026-46621-5 Manually NG32 / G1 1/4" 105 bar Acorn nut with lead seal Drain line external from pilot head (Y1) Omit Omit FPM Threaded L-body
R4V10-5D312A5 Manually NG32 / G1 1/4" 210 bar Hand knob Drain line external from pilot head (Y1) Omit Omit FPM Threaded L-body
R4V10-5D530A5 Manually NG32 / G1 1/4" 350 bar Acorn nut with lead seal Drain line internal Omit Omit FPM Threaded L-body
R4V03-5653009W31A1 Manually NG10 / G1/2" 350 bar Acorn nut with lead seal Drain line internal Vent function: solenoid not activated, unpressurized circulation 230 VAC / 50 Hz, 240 VAC / 60 Hz NBR Threaded T-body
R4V06-5D11011G0QA1 Manually NG25 / G1" 105 bar Hand knob Drain line internal Vent function: solenoid activated, unpressurized circulation 24 VDC NBR Threaded L-body
R4V06-5D51009GAGA1 Manually NG25 / G1" 350 bar Hand knob Drain line internal Vent function: solenoid not activated, unpressurized circulation 205 VDC NBR Threaded L-body
R4V06-5653009W31A1 Manually NG25 / G1" 350 bar Acorn nut with lead seal Drain line internal Vent function: solenoid not activated, unpressurized circulation 230 VAC / 50 Hz, 240 VAC / 60 Hz NBR Threaded T-body
R4V03-5631009G0QA1031 Manually NG10 / G1/2" 210 bar Hand knob Drain line internal Vent function with slow unloading: solenoid not activated, unpressurized circulation 24 VDC NBR Threaded T-body
Close [ x ]
Full Screen
687466
687478
