Crimped Thermoplastic Oil & Gas Hose Fittings, HV Series Fittings

Parker HV Fittings are designed to be used with HCR Collapse Resistant Hydraulic Hose. Includes Grayloc fittings.

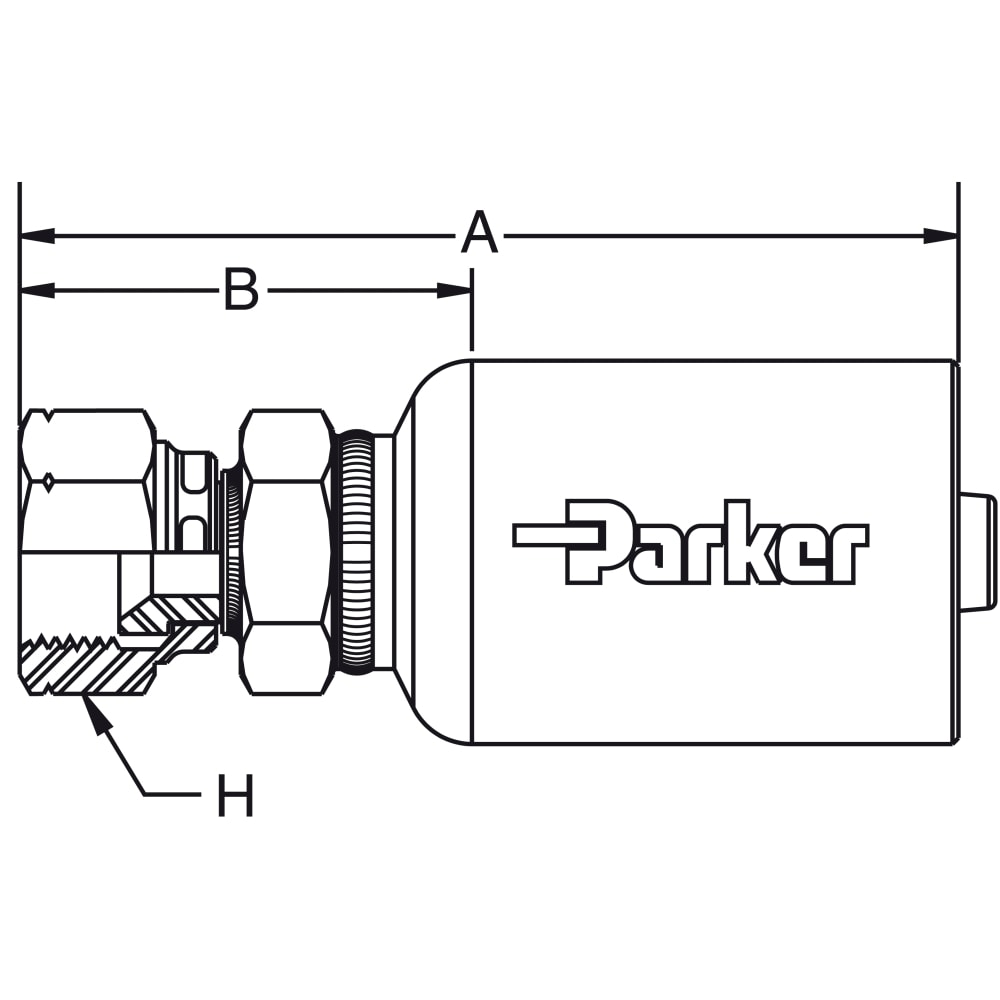

Technical Specifications

  • Hose Inside Diameter: 12 to 25 mm
  • Connection Size: 9/16"-18 inch Thread, UNF-LH
  • Length: 4.25 to 6.65 inch, 108 to 169 mm
  • Maximum Operating Pressure: 5000 psi, 34.5 MPa
  • Materials of Construction: Stainless Steel
  • Flange Size: 1GR4, 1GR7
Safety Warning

Full Product Description

Parker HV Series Fittings are designed to be used in conjunction with HCR Collapse Resistant Hydraulic Hose to provide a high performance, subsea rated solution for a variety of applications.



Markets:

• Oil & Gas

• Marine



Features/Benefits:

• Available for 1/2” and 1” hose sizes

• 5,000 psi (34.5 MPa) with 4:1 design factor

• 316 stainless steel construction for superior corrosion resistance

• Available in Grayloc®, Dual Seal, or female JIC ends



Applications:

• Subsea Hydraulics

• BOP Stack

• Well Stimulation

• Hydraulic Flying Leads



Note:

• Assembly working pressure is dependent on the lowest rated component. Therefore, if the hose has a lower pressure rating than the fitting, the working pressure of the fitting is the working pressure of the assembly.
