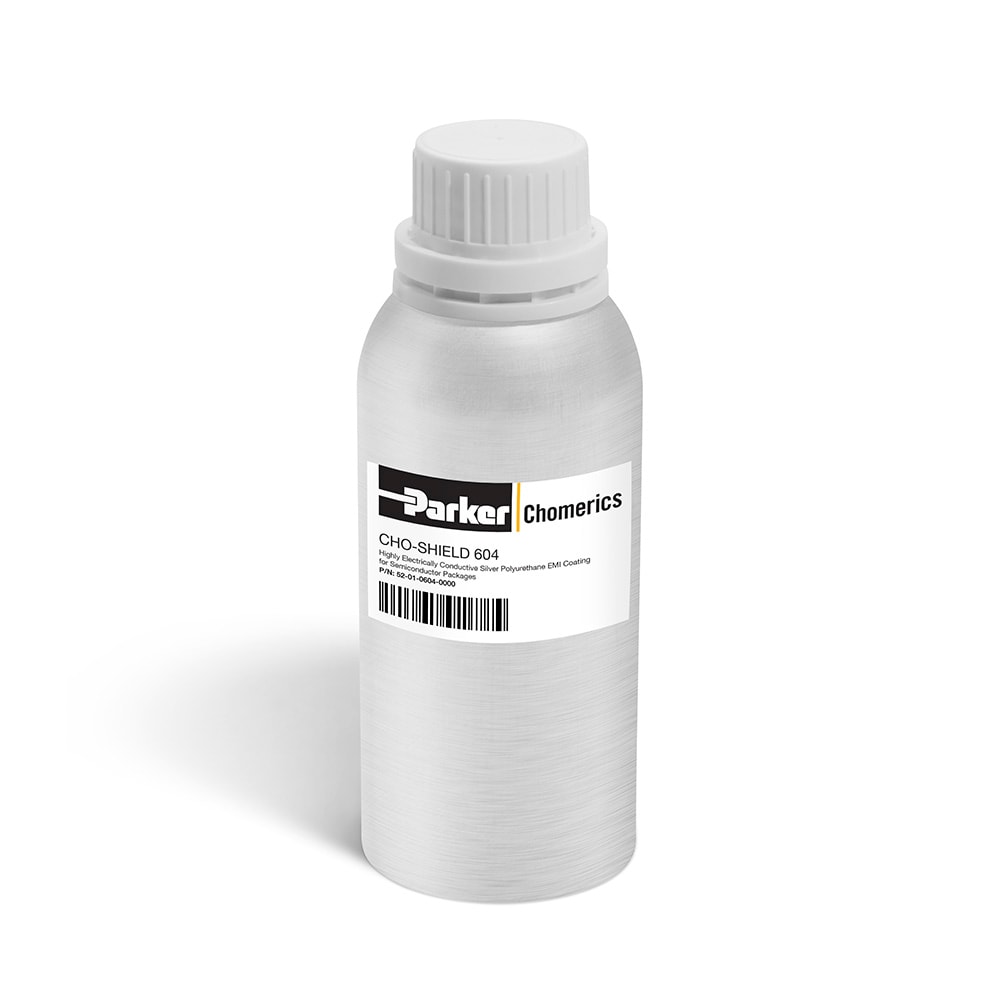

CHO-SHIELD 604 Electrically Conductive Silver Polyurethane Paint

CHO-SHIELD 604 Electrically Conductive Silver Polyurethane Paint

Parker Chomerics CHO-SHIELD® 604 is a highly conductive, flexible, advanced coating developed for high volume, precise spray applications on circuit boards and semiconductor packages.

Especificaciones técnicas

  • Opciones de material de polímero: Polyurethane
  • Material de relleno: Silver
  • Tipo de paquete: 10 Fluid Ounce Aluminum Bottle
  • Cebado incluido: Not Required
  • Color: Silver
  • Viscosidad de aspersión y método de prueba: 19 to 25 sec Zahn Cup 2
  • Resistividad de la superficie: <= 0.010 Ω/square
  • Nivel de blindaje de ruido: > 70 dB
  • Grosor de la película: 0.025 mm
  • Gravedad específica: 1.23
  • Porcentaje de sólidos por peso: 30 %
  • Temperatura de funcionamiento: -40 to 125 °C
  • Vida útil en depósito: 9 Months
Safety Warning

Descripción completa del producto

Parker Chomerics CHO-SHIELD® 604 is a highly conductive, flexible, advanced coating developed for high volume, precise spray applications on circuit boards and semiconductor packages. Combined with innovative technologies and packaging designs, CHO-SHIELD® 604 can provide board level or package level EMI shielding of electrical components.

Applied correctly, CHO-SHIELD® 604 can replace stamped metal cans, saving valuable board space and reducing the overall cost of board level EMI shielding. CHO SHIELD® 604's specially formulated flexible polymer system provides tenacious adhesion and good environmental stability.

Features/Benefits:
• One component
• Silver flake filler
• Polyurethane coating
• Designed for high volume spray applications
• Exceptional working life at room temp. (cures only when heated >125°C)
• Flexible coating which provides great adhesion to a
variety of substrates

Typical Applications:
• Board level EMI shielding of printed circuit boards (PCBs) or other electrical components

Documentos relacionados

×
Productos Peso (g)
52-01-0604-0000 290
