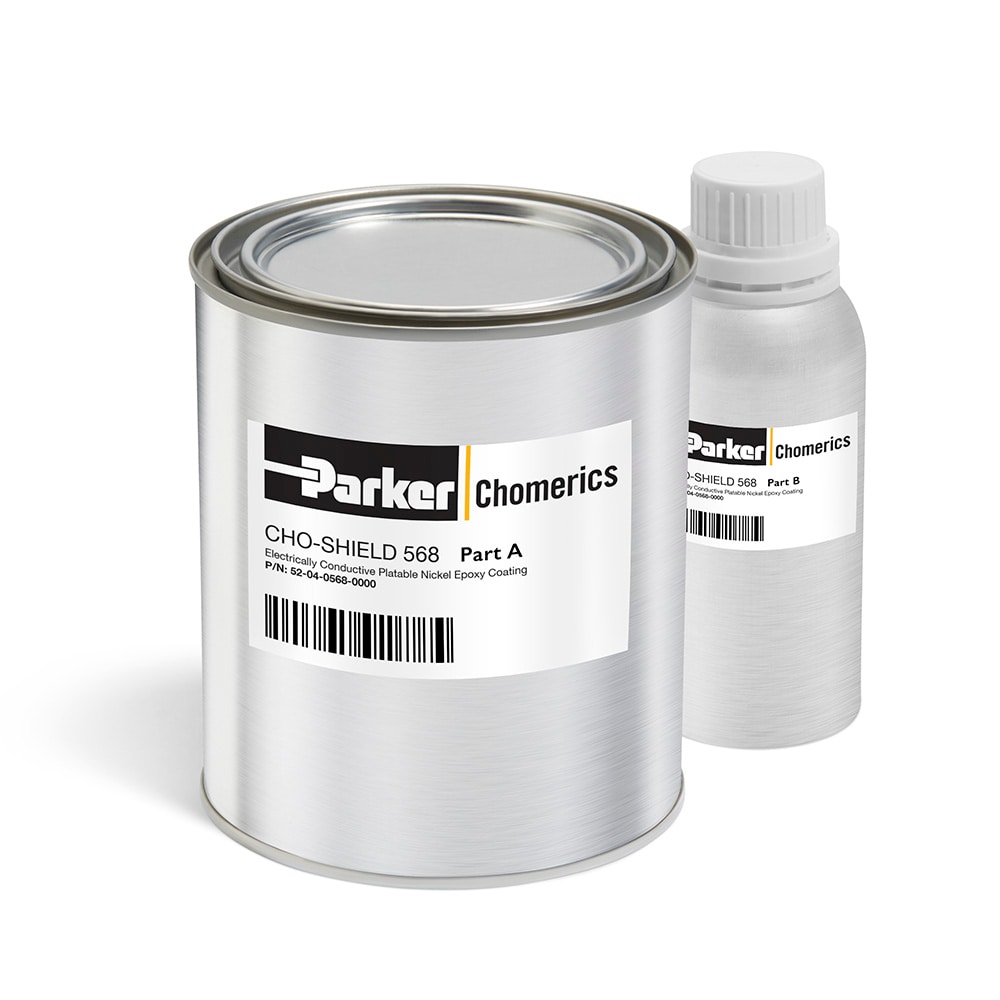

CHO-SHIELD 568 Electrically Conductive Nickel Epoxy Paint

CHO-SHIELD 568 Electrically Conductive Nickel Epoxy Paint

Parker Chomerics CHO-SHIELD® 568 conductive coating is a two-component, nickel-filled epoxy specially formulated to accept an electrolytic plating layer

Especificaciones técnicas

  • Tipo de paquete: 2 Component Kit, A: 1 Quart Aluminum Can, B: 2/3 Quart Aluminum Bottle
  • Cebado incluido: Not Required
  • Opciones de material de polímero: Epoxy
  • Material de relleno: Nickel
  • Relación: 100:27.7 by weight
  • Color: Gray
  • Viscosidad de aspersión y método de prueba: 17 to 23 sec Zahn Cup 2
  • Resistividad de la superficie: <= 10 Ω/square
  • Grosor de la película: 0.05 mm
  • Gravedad específica: 1.75
  • Temperatura de funcionamiento: -40 to 150 °C
  • Vida útil en depósito: 9 Months
Safety Warning

Descripción completa del producto

Parker Chomerics CHO-SHIELD® 568 conductive coating is a two-component, nickel-filled epoxy specially formulated to accept an electrolytic plating layer. CHO-SHIELD® 568 is a grey-colored epoxy meant to provide a base layer for the purposed of electrolytically plating a non-conductive plastic substrate. The coating allows for a highly conductive and robust layer that is able to accept multiple metal layers with minimal thickness buildup and good adhesion to plastics. Typical applications include military and commercial components which require a metal coating on a dielectric composite material.

Features and Benefits:
• Pre-measured kit allows easy mixing of components in one container
• Low cost conductive filler (Nickel flake) provides adequate surface conductivity
• Strong and durable coating due to epoxy polymer
• No primer required
• Room temperature curing available
