CHO-SHIELD 2040 Electrically Conductive Silver Acrylic Paint CHO-SHIELD 2040 Electrically Conductive Silver Acrylic Paint CHO-SHIELD 2040 Electrically Conductive Silver Acrylic Paint

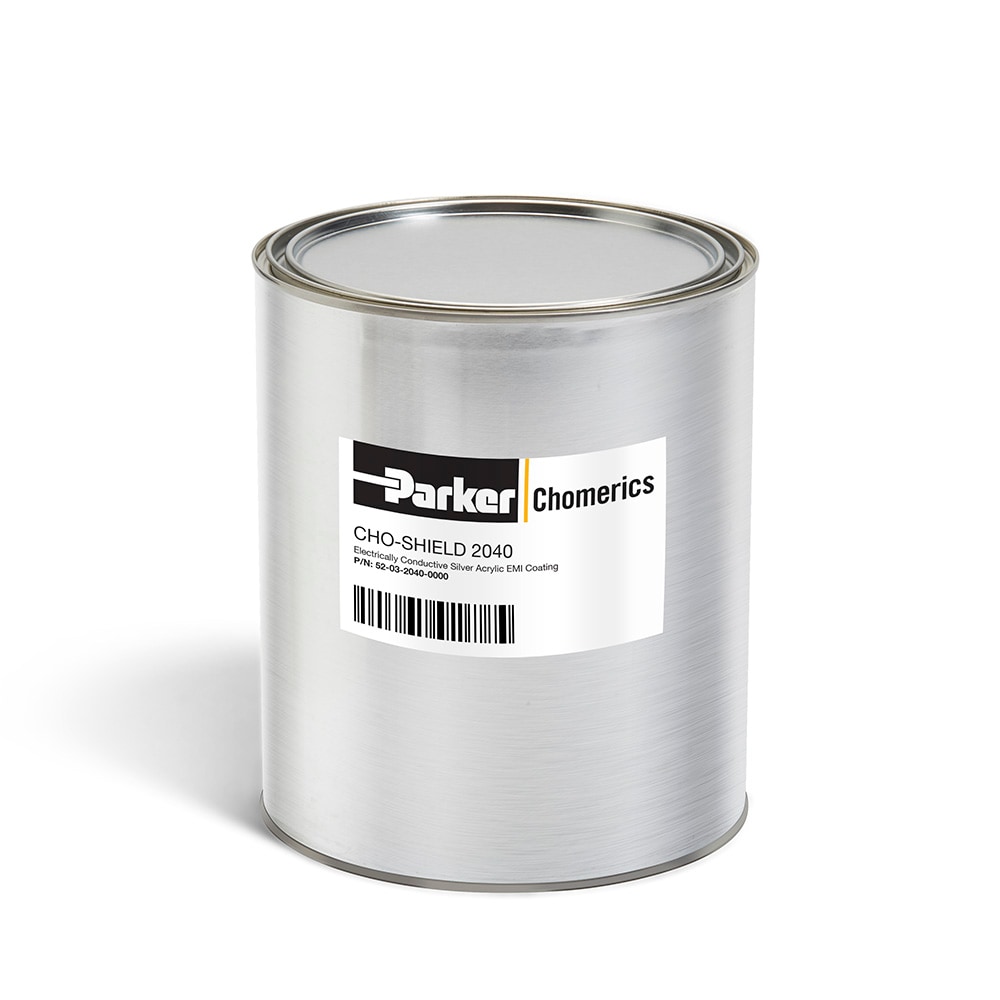

CHO-SHIELD 2040 Electrically Conductive Silver Acrylic Paint

Parker Chomerics CHO-SHIELD® 2040 EMI coating is a one-component, silver-filled conductive acrylic coating that is specially formulated to provide premium EMI shielding on plastic substrates

Especificaciones técnicas

  • Tipo de paquete: 1 Gallon Aluminum Can
  • Cebado incluido: Not Required
  • Opciones de material de polímero: Acrylic
  • Material de relleno: Silver
  • Color: Silver
  • Viscosidad de aspersión y método de prueba: 16 to 22 sec Zahn Cup 2
  • Resistividad de la superficie: < 0.025 Ω/square
  • Nivel de blindaje de ruido: > 80 dB
  • Grosor de la película: 0.025 mm
  • Gravedad específica: 1.23
  • Porcentaje de sólidos por peso: 40 %
  • Temperatura de funcionamiento: -40 to 85 °C
  • Vida útil en depósito: 12 Months
Safety Warning

Descripción completa del producto

Parker Chomerics CHO-SHIELD® 2040 EMI coating is a one-component, silver-filled conductive acrylic coating that is specially formulated to provide premium EMI shielding on plastic substrates. CHO-SHIELD® 2040 is a silver-colored acrylic that provides excellent EMI shielding (>80 dB) while allowing for quick dry-time and handling. Typical applications include electronic enclosures and assemblies.

Features and Benefits:
• One component solution so no measuring and mixing of components is required
• Can be applied with standard spray paint equipment, eliminating need for expensive equipment
• Material dries at room temperature so no high temperature cure ovens are required
• Silver provides anti-microbial properties making this coating a good choice for hospital applications
• Minimized material costs and paint cycle time due to thin coating thickness
• Great EMI shielding properties (>80 dB) due to silver flake filler

Documentos relacionados

×
Productos Peso (g)
52-03-2040-0000 4238
