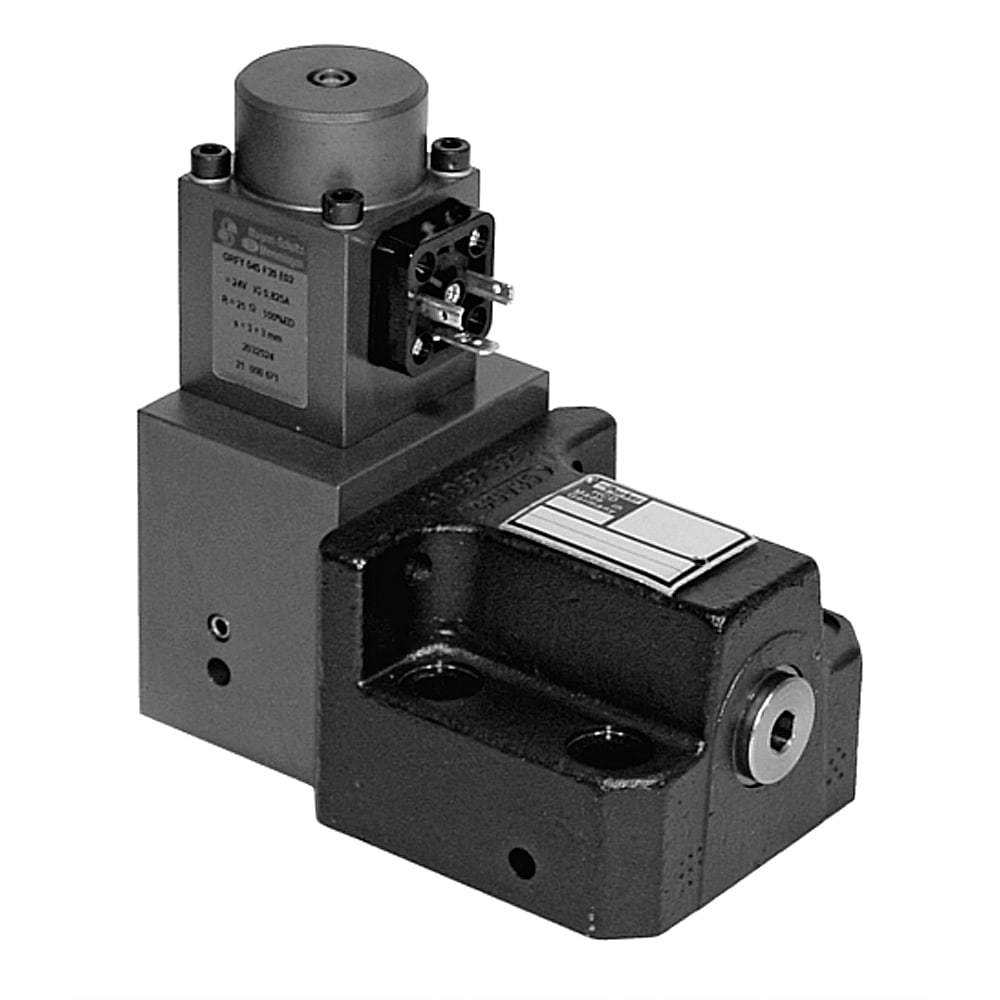

Pilot Operated Pressure Relief Valves - Series VBY / VBY*K

Working extremely stable and precise, the proportional version series VBY*K in size NG06 is particularly suitable for use in machine tools and other applications.

Especificaciones técnicas

  • Tipo de montaje: Subplate mounting
  • Tipo de operación: Pilot
  • Peso: 2.4 to 4.5 kg Depending on Size
  • Serie del producto: Pressure valve
  • Tipo de accionamiento: Manual, Solenoid
  • Índice de caudal máximo: N/A
  • Presión de trabajo máxima: Depending on size, 315 - 350 bar
  • Temperatura máxima de funcionamiento: 60 °C
  • Temperatura mínima de funcionamiento: -20 °C
  • Material de la junta: NBR, FPM
  • Material del cuerpo: Cast iron
  • Para tipo de fluido: Hydraulic oil according to DIN 51524, Water glycol
  • Rango de control de presión: N/A
  • Ajuste de presión máxima: 64, 100, 160, 210, 315 bar
  • Caudal: Depending on size, 40 - 160 L/min
Safety Warning

Descripción completa del producto

Parker's proportional pressure relief valves series VBY*K in size NG06 provide a very low leakage and thus an optimized energy efficiency. The spool type valves work extremely stable and precise.

Markets:
• Industrial
• Machine tools

Features/Benefits:
• Works stable and precise - for high process accuracy
• Low leakage - higher energy efficiency
• 5 pressure stages - enables fine adjustment
• Short delivery time for most versions - no warehousing necessary
• Subplate mounting acc. to ISO 5781
• Main stage spool type valve
• Pilot stage seated type valve
• External drain
• Proportional adjustment

Applications:
• Suitable for general hydraulic applications
• Machine tools, e.g. for clamping and other functions

Technical Functionality:

VBY*K is a proportional pressure relief valve with external drain. Because of the high pressure capability of the outlet port, this valve can also be used as sequence valve. In this case the external drain port Y has to be used. The optimum performance can be achieved in combination with the digital amplifier module PCD00A-400.

Note: Pilot operated pressure relief valves series VBY and proportional pressure relief valves series VBY*K in size NG10 are not longer available from Parker, please refer to the recommended products for a replacement.

Documentos relacionados

×
Productos Tipo de accionamiento Rango de control de presión Tipo de control de ajuste de presión Conexión del puerto Material de la junta
VBY064A06N Manual 64 bar Screw with hexagon socket NG06 / CETOP 03 NBR
VBY064A06V Manual 64 bar Screw with hexagon socket NG06 / CETOP 03 FPM
VBY064A10N Manual 64 bar Screw with hexagon socket NG10 / CETOP 05 NBR
VBY064A10V Manual 64 bar Screw with hexagon socket NG10 / CETOP 05 FPM
VBY064H06N Manual 64 bar Cylinder lock NG06 / CETOP 03 NBR
VBY160A06N Manual 160 bar Screw with hexagon socket NG06 / CETOP 03 NBR
VBY160A06V Manual 160 bar Screw with hexagon socket NG06 / CETOP 03 FPM
VBY160A10N Manual 160 bar Screw with hexagon socket NG10 / CETOP 05 NBR
VBY160A10V Manual 160 bar Screw with hexagon socket NG10 / CETOP 05 FPM
VBY210A06N Manual 210 bar Screw with hexagon socket NG06 / CETOP 03 NBR
VBY210A10N Manual 210 bar Screw with hexagon socket NG10 / CETOP 05 NBR
VBY315A06N Manual 315 bar Screw with hexagon socket NG06 / CETOP 03 NBR
VBY315A10N Manual 315 bar Screw with hexagon socket NG10 / CETOP 05 NBR
VBY315A10V Manual 315 bar Screw with hexagon socket NG10 / CETOP 05 FPM
VBY064H10N Manual 64 bar Cylinder lock NG10 / CETOP 05 NBR
VBY160H10N Manual 160 bar Cylinder lock NG10 / CETOP 05 NBR
VBY210H06N Manual 210 bar Cylinder lock NG06 / CETOP 03 NBR
VBY315H06N Manual 315 bar Cylinder lock NG06 / CETOP 03 NBR
VBY315H10N Manual 315 bar Cylinder lock NG10 / CETOP 05 NBR
VBY064K06N Solenoid 64 bar Proportional NG06 / CETOP 03 NBR
VBY100K06N Solenoid 100 bar Proportional NG06 / CETOP 03 NBR
VBY160K06N Solenoid 160 bar Proportional NG06 / CETOP 03 NBR
VBY210K06V Solenoid 210 bar Proportional NG06 / CETOP 03 FPM
VBY315K06N Solenoid 315 bar Proportional NG06 / CETOP 03 NBR
VBY064K06V Solenoid 64 bar Proportional NG06 / CETOP 03 FPM
VBY064K10N Solenoid 64 bar Proportional NG10 / CETOP 05 NBR
VBY064K10V Solenoid 64 bar Proportional NG10 / CETOP 05 FPM
VBY100K06V Solenoid 100 bar Proportional NG06 / CETOP 03 FPM
VBY100K10N Solenoid 100 bar Proportional NG10 / CETOP 05 NBR
VBY160K06V Solenoid 160 bar Proportional NG06 / CETOP 03 FPM
VBY160K10N Solenoid 160 bar Proportional NG10 / CETOP 05 NBR
VBY160K10V Solenoid 160 bar Proportional NG10 / CETOP 05 FPM
VBY210K06N Solenoid 210 bar Proportional NG06 / CETOP 03 NBR
VBY210K10N Solenoid 210 bar Proportional NG10 / CETOP 05 NBR
VBY315K06V Solenoid 315 bar Proportional NG06 / CETOP 03 FPM
VBY315K10N Solenoid 315 bar Proportional NG10 / CETOP 05 NBR
VBY315K10V Solenoid 315 bar Proportional NG10 / CETOP 05 FPM
VBY210K10V Solenoid 210 bar Proportional NG10 / CETOP 05 FPM
