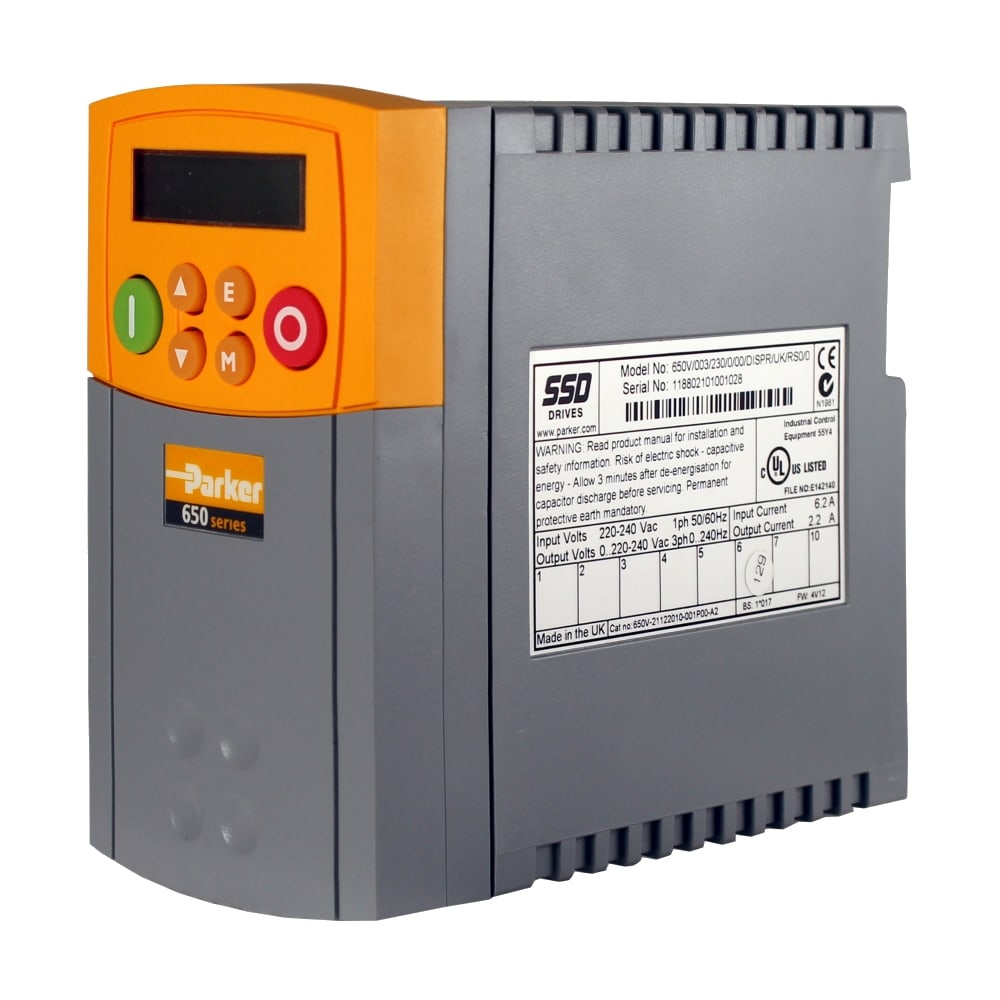

過時：AC變頻驅動器，kW額定 - AC650G系列 過時：AC變頻驅動器，kW額定 - AC650G系列

過時：AC變頻驅動器，kW額定 - AC650G系列 OBSOLETE

何處購買

AC650G是一款入門級交流驅動器，適用於多種工業應用，節能效果顯著。

技術規格

  • 輸出功率: 0.25 to 7.5 kW
  • 輸入電壓: 1*230 VAC, 3*230 VAC, 3*380 to 460 VAC
  • 控制模式: V/Hz, Sensorless Vector
  • 通訊介面: RS232/RS485, Profibus
  • 符合規格: CE (EMC & LVD), UL Listed, cUL Listed
  • 運作溫度: 0 to 40 °C (derate up to 50°C max), 32 to 104 °F (derate up to 122°F max)
  • 運作高度: up to 1000 m ASL (derate > 1000m)
  • 過載額定值: Heavy Duty Rating (Constant Torque) : 150% for 60s %, Normal Duty Rating (Variable Torque - pumps and fans) : 110% for 60s %

完整的產品描述

經濟實惠的AC650G非常適合需要在低速下精確控制、更高啟動扭矩或需要改善變負載速度調節的應用。無論您需要控制輸送帶、自動屏障、機器主軸或其他高性能應用，AC650G的無感矢量技術均能提供改進的控制。

AC650G以簡單為設計理念，採用緊湊格式，標配DIN導軌安裝，便於集成到任何電氣控制面板中。操作/編程鍵盤可在設置後拆下，以防止未經授權更改變頻器配置。對於高達7.5kW的簡單高性能電機速度控制，AC650G是一款易於使用的即插即用解決方案，能讓您的系統迅速運行。


特點：
• 高扭矩無感矢量控制，用於先進的電機控制
• 集成操作鍵盤，可選擇遠程安裝
• Profibus、RS232、RS485通信選項，用於PLC集成
• 靈活的I/O，包括模擬和繼電器輸出以及電機熱敏電阻輸入，提供更大的控制選擇
• 預編程宏，允許快速簡單的驅動設置
• DIN導軌安裝，便於集成到任何電氣櫃中
• 6514克隆模塊選項，允許不同驅動器之間的參數備份和傳輸

優點：
• 通過操作鍵盤進行診斷和控制
• 通過使用預編程宏簡化操作：
   - 簡單速度控制：設置速度和電壓或電流，具有啟動/停止方向控制。
   - 手動/自動控制：設置為使用本地速度設置或外部參考運行。
   - 預設速度控制：使用數字輸入選擇多達8個預編程速度。
   - 增加/減少：使用數字輸入增加或減少速度。
   - PID控制：控制壓力、流量、溫度或任何過程變量。

標準：
本頁列出的AC650G系列交流驅動器在按照相關產品手冊安裝時符合以下標準：
• CE標誌符合EN50178（安全、低電壓指令）
• CE標誌符合EN61800-3（EMC指令）
• 符合美國標準UL508C的UL認證
• 符合加拿大標準C22.2 #14的cUL認證。

技術規格：
電源：
單相單元
 220-240VAC +/- 10 %，50-60 Hz +/- 5%
三相單元
 220-240VAC +/- 10 %，50-60 Hz +/- 5%
 380-460VAC +/- 10 %，50-60 Hz +/- 5%

環境：
 0-40°C（降額至50°C）
 高達1000m ASL（每100m降額1%，最高2000m）

保護：
 IP20

過載：
 恆定扭矩額定值：150%持續30秒
 變扭矩額定值（泵和風扇）：110%持續30秒

輸出頻率：
 0-120Hz

輸入/輸出：
 模擬輸入 2；速度控制
 0-10V，0-10V/4-20mA
 模擬輸出 1；用戶可配置的輸出頻率/負載0-10V
 數字輸入 5；用戶可配置的啟動/停止/方向/預設速度（8）
 數字輸入/輸出 2；用戶可配置為輸入或輸出

數字繼電器輸出：
 繼電器輸出4A @ 240V
 所有數字輸出可配置為：在（不在）速度/在（高於）最低速度/運行（停止）/健康（跳閘）/高於（低於）預設負載

電機熱敏電阻輸入

電源輸出：
 24 VDC（50mA）- 數字I/O電源
 10 VDC（10mA）- 模擬參考電源

通信選項：
 RS485/RS232
 Profibus



*此網頁內容透過AI即時翻譯, 您可利用線上聊天功能來獲取更多資訊

相關文件

Literature and Reference Materials
EPLAN Macros - AC650G Variable Speed Drives
HA466357 : 6513 RS485/RS232 Communications Interface - Product Manual (English)
Product Manual AC650 frame 1-3 (Legacy Product) --HA464828U003
Software Downloads
Software Download Page
×
查看型錄
分享/電子郵件
列印
产品 輸入電壓 额定输出功率（kW）（一般负载） Brake Switch Option 內含 EMC 濾波器 键盘/用户接口选项
650G-21115010-001P00-A0 1*230VAC 0.25 No No None
650G-21115010-001P00-A1 1*230VAC 0.25 No No Standard Keypad Fitted
650G-21115010-001P00-A2 1*230VAC 0.25 No No Standard Keypad Fitted (local or remote mountable)
650G-21115010-0F1P00-A0 1*230VAC 0.25 No Yes None
650G-21115010-0F1P00-A1 1*230VAC 0.25 No Yes Standard Keypad Fitted
650G-21115010-0F1P00-A2 1*230VAC 0.25 No Yes Standard Keypad Fitted (local or remote mountable)
650G-21122010-001P00-A0 1*230VAC 0.37 No No None
650G-21122010-001P00-A1 1*230VAC 0.37 No No Standard Keypad Fitted
650G-21122010-001P00-A2 1*230VAC 0.37 No No Standard Keypad Fitted (local or remote mountable)
650G-21122010-0F1P00-A0 1*230VAC 0.37 No Yes None
650G-21122010-0F1P00-A1 1*230VAC 0.37 No Yes Standard Keypad Fitted
650G-21122010-0F1P00-A2 1*230VAC 0.37 No Yes Standard Keypad Fitted (local or remote mountable)
650G-21130010-001P00-A0 1*230VAC 0.55 No No None
650G-21130010-001P00-A1 1*230VAC 0.55 No No Standard Keypad Fitted
650G-21130010-001P00-A2 1*230VAC 0.55 No No Standard Keypad Fitted (local or remote mountable)
650G-21130010-0F1P00-A0 1*230VAC 0.55 No Yes None
650G-21130010-0F1P00-A1 1*230VAC 0.55 No Yes Standard Keypad Fitted
650G-21130010-0F1P00-A2 1*230VAC 0.55 No Yes Standard Keypad Fitted (local or remote mountable)
650G-21140010-001P00-A0 1*230VAC 0.75 No No None
650G-21140010-001P00-A1 1*230VAC 0.75 No No Standard Keypad Fitted
650G-21140010-001P00-A2 1*230VAC 0.75 No No Standard Keypad Fitted (local or remote mountable)
650G-21140010-0F1P00-A0 1*230VAC 0.75 No Yes None
650G-21140010-0F1P00-A1 1*230VAC 0.75 No Yes Standard Keypad Fitted
650G-21140010-0F1P00-A2 1*230VAC 0.75 No Yes Standard Keypad Fitted (local or remote mountable)
650G-21155020-001P00-A0 1*230VAC 1.1 No No None
650G-21155020-001P00-A1 1*230VAC 1.1 No No Standard Keypad Fitted
650G-21155020-001P00-A2 1*230VAC 1.1 No No Standard Keypad Fitted (local or remote mountable)
650G-21155020-0F1P00-A0 1*230VAC 1.1 No Yes None
650G-21155020-0F1P00-A1 1*230VAC 1.1 No Yes Standard Keypad Fitted
650G-21155020-0F1P00-A2 1*230VAC 1.1 No Yes Standard Keypad Fitted (local or remote mountable)
650G-21170020-001P00-A0 1*230VAC 1.5 No No None
650G-21170020-001P00-A1 1*230VAC 1.5 No No Standard Keypad Fitted
650G-21170020-001P00-A2 1*230VAC 1.5 No No Standard Keypad Fitted (local or remote mountable)
650G-21170020-0F1P00-A0 1*230VAC 1.5 No Yes None
650G-21170020-0F1P00-A1 1*230VAC 1.5 No Yes Standard Keypad Fitted
650G-21170020-0F1P00-A2 1*230VAC 1.5 No Yes Standard Keypad Fitted (local or remote mountable)
650G-22196030-B01P00-A0 1/3*230VAC 2.2 Yes No None
650G-22196030-B01P00-A1 1/3*230VAC 2.2 Yes No Standard Keypad Fitted
650G-22196030-B01P00-A2 1/3*230VAC 2.2 Yes No Standard Keypad Fitted (local or remote mountable)
650G-22196030-BF1P00-A0 1/3*230VAC 2.2 Yes Yes None
650G-22196030-BF1P00-A1 1/3*230VAC 2.2 Yes Yes Standard Keypad Fitted
650G-22196030-BF1P00-A2 1/3*230VAC 2.2 Yes Yes Standard Keypad Fitted (local or remote mountable)
650G-23212330-B01P00-A0 3*230VAC 3 Yes No None
650G-23212330-B01P00-A1 3*230VAC 3 Yes No Standard Keypad Fitted
650G-23212330-B01P00-A2 3*230VAC 3 Yes No Standard Keypad Fitted (local or remote mountable)
650G-23212330-BF1P00-A0 3*230VAC 3 Yes Yes None
650G-23212330-BF1P00-A1 3*230VAC 3 Yes Yes Standard Keypad Fitted
650G-23212330-BF1P00-A2 3*230VAC 3 Yes Yes Standard Keypad Fitted (local or remote mountable)
650G-23216430-B01P00-A0 3*230VAC 4 Yes No None
650G-23216430-B01P00-A1 3*230VAC 4 Yes No Standard Keypad Fitted
650G-23216430-B01P00-A2 3*230VAC 4 Yes No Standard Keypad Fitted (local or remote mountable)
650G-23216430-BF1P00-A0 3*230VAC 4 Yes Yes None
650G-23216430-BF1P00-A1 3*230VAC 4 Yes Yes Standard Keypad Fitted
650G-23216430-BF1P00-A2 3*230VAC 4 Yes Yes Standard Keypad Fitted (local or remote mountable)
650G-43115020-B01P00-A0 3*400/460VAC 0.37 Yes No None
650G-43115020-B01P00-A1 3*400/460VAC 0.37 Yes No Standard Keypad Fitted
650G-43115020-B01P00-A2 3*400/460VAC 0.37 Yes No Standard Keypad Fitted (local or remote mountable)
650G-43115020-BF1P00-A0 3*400/460VAC 0.37 Yes Yes None
650G-43115020-BF1P00-A1 3*400/460VAC 0.37 Yes Yes Standard Keypad Fitted
650G-43115020-BF1P00-A2 3*400/460VAC 0.37 Yes Yes Standard Keypad Fitted (local or remote mountable)
650G-43120020-B01P00-A0 3*400/460VAC 0.55 Yes No None
650G-43120020-B01P00-A1 3*400/460VAC 0.55 Yes No Standard Keypad Fitted
650G-43120020-B01P00-A2 3*400/460VAC 0.55 Yes No Standard Keypad Fitted (local or remote mountable)
650G-43120020-BF1P00-A0 3*400/460VAC 0.55 Yes Yes None
650G-43120020-BF1P00-A1 3*400/460VAC 0.55 Yes Yes Standard Keypad Fitted
650G-43120020-BF1P00-A2 3*400/460VAC 0.55 Yes Yes Standard Keypad Fitted (local or remote mountable)
650G-43125020-B01P00-A0 3*400/460VAC 0.75 Yes No None
650G-43125020-B01P00-A1 3*400/460VAC 0.75 Yes No Standard Keypad Fitted
650G-43125020-B01P00-A2 3*400/460VAC 0.75 Yes No Standard Keypad Fitted (local or remote mountable)
650G-43125020-BF1P00-A0 3*400/460VAC 0.75 Yes Yes None
650G-43125020-BF1P00-A1 3*400/460VAC 0.75 Yes Yes Standard Keypad Fitted
650G-43125020-BF1P00-A2 3*400/460VAC 0.75 Yes Yes Standard Keypad Fitted (local or remote mountable)
650G-43135020-B01P00-A0 3*400/460VAC 1.1 Yes No None
650G-43135020-B01P00-A1 3*400/460VAC 1.1 Yes No Standard Keypad Fitted
650G-43135020-B01P00-A2 3*400/460VAC 1.1 Yes No Standard Keypad Fitted (local or remote mountable)
650G-43135020-BF1P00-A0 3*400/460VAC 1.1 Yes Yes None
650G-43135020-BF1P00-A1 3*400/460VAC 1.1 Yes Yes Standard Keypad Fitted
650G-43135020-BF1P00-A2 3*400/460VAC 1.1 Yes Yes Standard Keypad Fitted (local or remote mountable)
650G-43145020-B01P00-A0 3*400/460VAC 1.5 Yes No None
650G-43145020-B01P00-A1 3*400/460VAC 1.5 Yes No Standard Keypad Fitted
650G-43145020-B01P00-A2 3*400/460VAC 1.5 Yes No Standard Keypad Fitted (local or remote mountable)
650G-43145020-BF1P00-A0 3*400/460VAC 1.5 Yes Yes None
650G-43145020-BF1P00-A1 3*400/460VAC 1.5 Yes Yes Standard Keypad Fitted
650G-43145020-BF1P00-A2 3*400/460VAC 1.5 Yes Yes Standard Keypad Fitted (local or remote mountable)
650G-43155020-B01P00-A0 3*400/460VAC 2.2 Yes No None
650G-43155020-B01P00-A1 3*400/460VAC 2.2 Yes No Standard Keypad Fitted
650G-43155020-B01P00-A2 3*400/460VAC 2.2 Yes No Standard Keypad Fitted (local or remote mountable)
650G-43155020-BF1P00-A0 3*400/460VAC 2.2 Yes Yes None
650G-43155020-BF1P00-A1 3*400/460VAC 2.2 Yes Yes Standard Keypad Fitted
650G-43155020-BF1P00-A2 3*400/460VAC 2.2 Yes Yes Standard Keypad Fitted (local or remote mountable)
650G-43168030-B01P00-A0 3*400/460VAC 3 Yes No None
650G-43168030-B01P00-A1 3*400/460VAC 3 Yes No Standard Keypad Fitted
650G-43168030-B01P00-A2 3*400/460VAC 3 Yes No Standard Keypad Fitted (local or remote mountable)
650G-43168030-BF1P00-A0 3*400/460VAC 3 Yes Yes None
650G-43168030-BF1P00-A1 3*400/460VAC 3 Yes Yes Standard Keypad Fitted
650G-43168030-BF1P00-A2 3*400/460VAC 3 Yes Yes Standard Keypad Fitted (local or remote mountable)
650G-43190030-B01P00-A0 3*400/460VAC 4 Yes No None
650G-43190030-B01P00-A1 3*400/460VAC 4 Yes No Standard Keypad Fitted
650G-43190030-B01P00-A2 3*400/460VAC 4 Yes No Standard Keypad Fitted (local or remote mountable)
650G-43190030-BF1P00-A0 3*400/460VAC 4 Yes Yes None
650G-43190030-BF1P00-A1 3*400/460VAC 4 Yes Yes Standard Keypad Fitted
650G-43190030-BF1P00-A2 3*400/460VAC 4 Yes Yes Standard Keypad Fitted (local or remote mountable)
650G-43212030-B01P00-A0 3*400/460VAC 5.5 Yes No None
650G-43212030-B01P00-A1 3*400/460VAC 5.5 Yes No Standard Keypad Fitted
650G-43212030-B01P00-A2 3*400/460VAC 5.5 Yes No Standard Keypad Fitted (local or remote mountable)
650G-43212030-BF1P00-A0 3*400/460VAC 5.5 Yes Yes None
650G-43212030-BF1P00-A1 3*400/460VAC 5.5 Yes Yes Standard Keypad Fitted
650G-43212030-BF1P00-A2 3*400/460VAC 5.5 Yes Yes Standard Keypad Fitted (local or remote mountable)
650G-43216030-B01P00-A0 3*400/460VAC 7.5 Yes No None
650G-43216030-B01P00-A1 3*400/460VAC 7.5 Yes No Standard Keypad Fitted
650G-43216030-B01P00-A2 3*400/460VAC 7.5 Yes No Standard Keypad Fitted (local or remote mountable)
650G-43216030-BF1P00-A0 3*400/460VAC 7.5 Yes Yes None
650G-43216030-BF1P00-A1 3*400/460VAC 7.5 Yes Yes Standard Keypad Fitted
650G-43216030-BF1P00-A2 3*400/460VAC 7.5 Yes Yes Standard Keypad Fitted (local or remote mountable)
