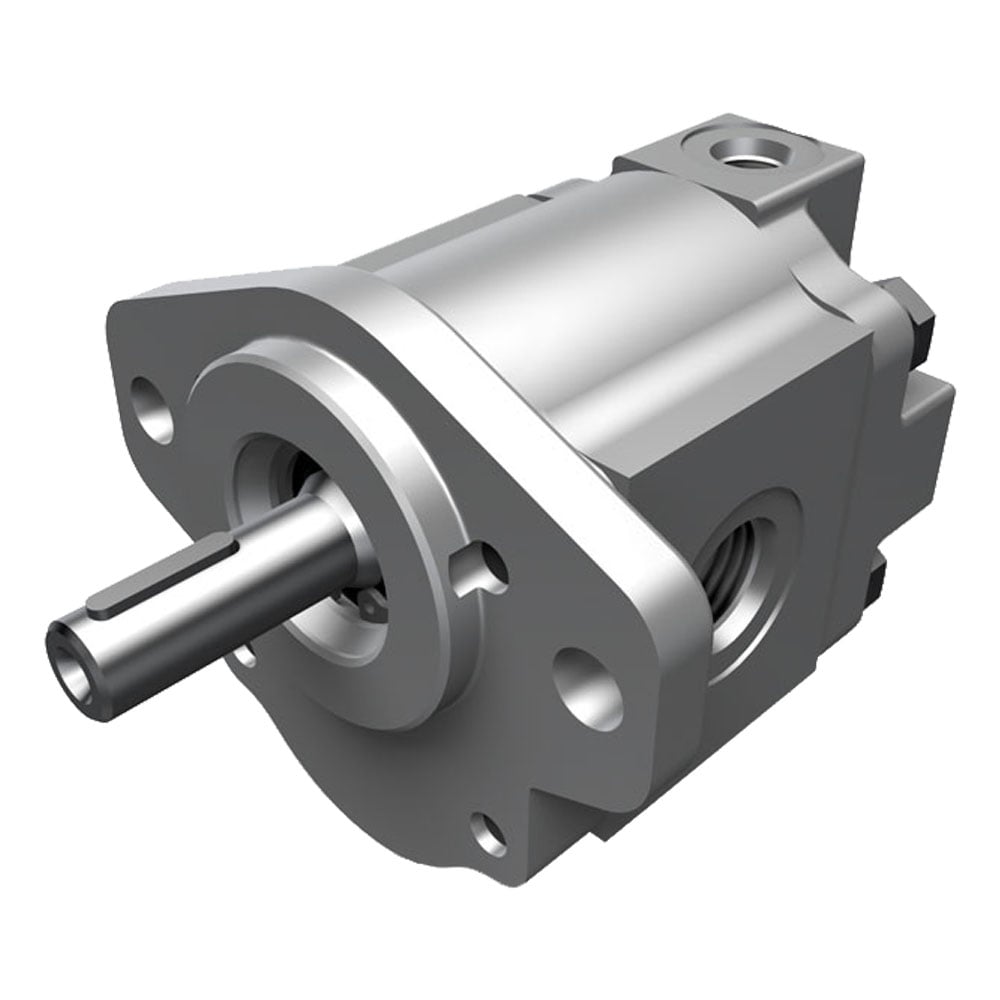

Parker’s 505 series fixed displacement gear motors offer cost effective, high power density due to their aluminum, bushing block construction, making them ideal in a broad selection of markets such as Material Handling, Agriculture, Turf, as well as a variety of Industrial Applications. They are available as single or multi-section motors.
Markets:
• Aerial
• Agriculture Machinery
• Material Handling Equipment
• Turf Equipment
• Vocational & Municipal Equipment
• Oil & Gas
Features/Benefits:
• Three-piece construction for distribution flexibility
• Aluminum pumping sections for light weight
• Journal bushings for long life
• Pressure balanced thrust blocks for high efficiency
• Multiple sections available
Applications:
• Fan drive motors
• Mower motors
• Sweeper motors
• Pump drive
Technical Specifications:
• Sizes from 2 to 13cc
• Operating pressures up to 275 bar (3,988 psi)
• Speeds up to 4,000 rpm
• CW, CCW, and Bi-rotational motors available
• SAE shafts, flanges and porting available
• Extensive valve options available: Pressure relief, anti-cavitation, cross port relief, solenoid unloading, proportional relief, and reversing.
