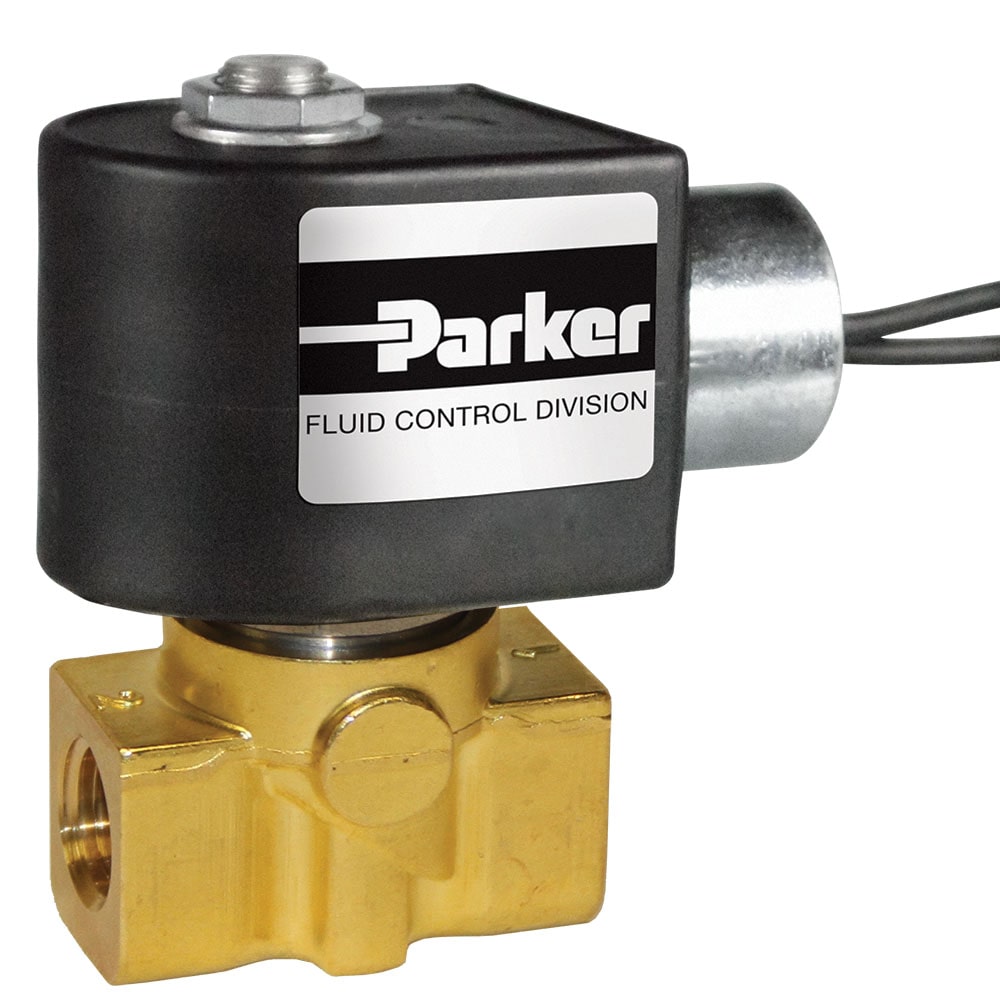

Parker 2-Way, Angle Body, Normally Closed, 3/8 Valves

Parker 2-Way, Angle Body, Normally Closed, 3/8" Valves

Parker 3/8" 2-Way Normally Closed Angle Body Valves provide operating pressures up to 232 psi for air, inert gasses and liquids, or 130 psi for steam with flow factors of 5.5 Cv. They can handle corrosive solutions and temperatures up to 356 F.

Especificaciones técnicas

  • Serie del producto: Angle Body Series
  • Tipo de válvula: 2-Way
  • Función: Normally Closed
  • Tamaño del puerto: 3/4 inch
  • Medio: Flow over seat for steam, air. or neutral gasses Or Flow under seat for liquids (Anti-water Hammer)
  • Material del cuerpo: 316L Stainless Steel
  • Presión de trabajo máxima: 87 or 232 psi
  • Presión mínima del piloto: 65.3 or 43.5 for Steam psi
  • Tamaño del orificio 1: 0.51 inch
  • Coeficiente del caudal 1: 5.5 Cv
  • Material de la junta: PTFE
  • Número de puertos: 2
  • Tipo de accionamiento: Pneumatic Operated
  • Tamaño del actuador: 32 (mm) or 50 (mm)
  • Material del alojamiento del accionador: Aluminum or 304 Stainless
  • Tipo de montaje: Pipe Mounting
  • Tipo de puerto: NPT
  • Peso: Up to 2.22 lb
  • Presión piloto máxima: 145 psi
  • Temperatura mínima del fluido: 14 °F
  • Temperatura máxima del fluido: 365 °F

Descripción completa del producto

Parker 2-Way, Angle Body, Normally Closed, 3/4" Valves are capable of handling corrosive solutions at temperatures up to 356 F. They have a durable aluminum or stainless steel actuator housing, offer over seat or under seat configurations for all flow applications, and conform to 94/9/CE specifications.

Markets:
• Commercial Equipment
• Food & Beverage
• Industrial Automation
• Oil & Gas
• Process Control

Features/ Benefits:
• Compact Design
• High Flow Rates up to 81.7Cv
• Visual Position Indicator
• Stainless Steel Actuator Housing for Exceptional Durability
• Mountable in Any Position
• Tight Shut-Off and Long Service Life
• Valves meet Pressure Equipment Directive 97/23/EC
• Valves Conform to the Terms of the 94/9/CE Directive Specific to Non-Electrical Equipment for Use Within Potentially Explosive Environments - Zone 2/22

Applications:
• Food and Beverage Processing
• Water Technology & Treatment
• Textile Industry
• Cooling Systems on Injection Molding Machines
• Pharmaceutical & Cosmetic Industry
• Chemical Process Technology
• Refrigeration & Cooling Heat Exchangers
• Sterilizers Steam Supply
• Water Applications: Mining, Cement / Concrete Systems, Pulp & Paper
• General Industrial Applications of Aggressive Fluids
• Industrial Laundry Equipment
• Industrial Air Dryers
