Baldwin - Hydraulic Filter Elements | #PT707-HD3


LOADING IMAGES
PT707-HD3

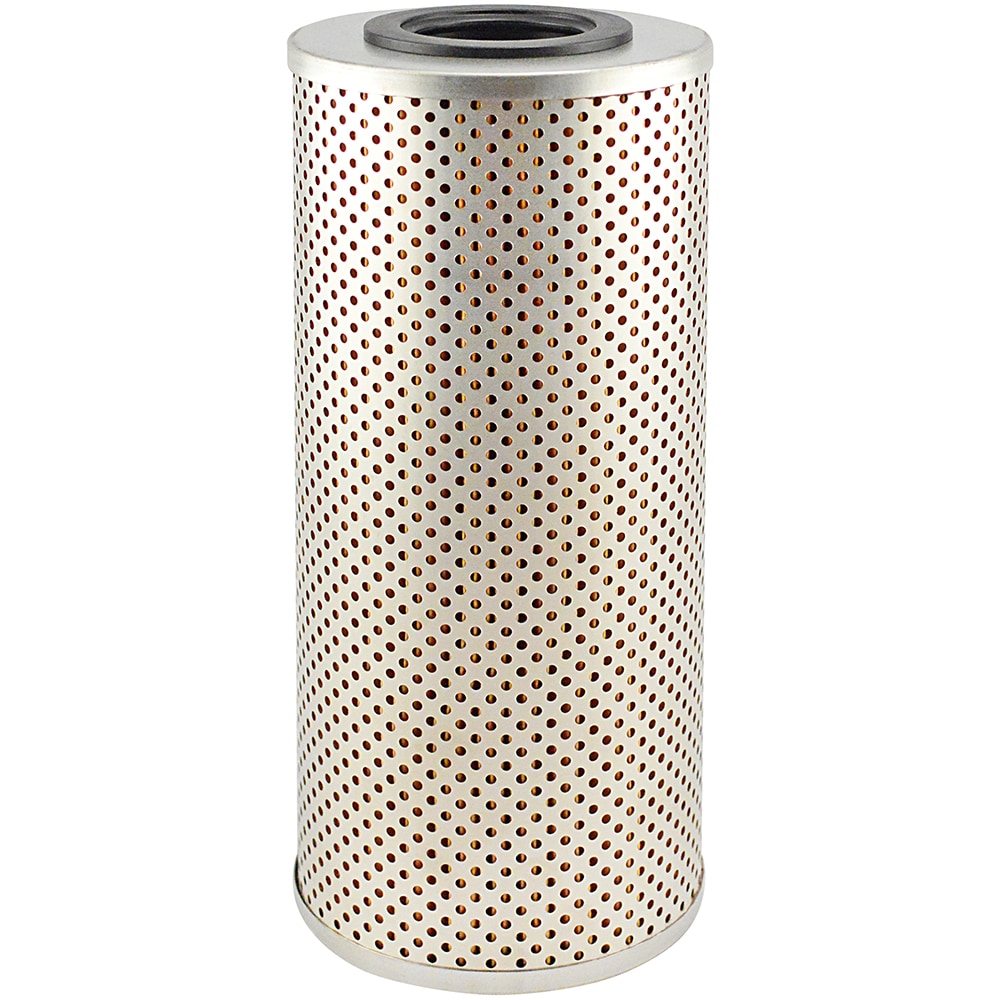

Baldwin - Hydraulic Filter Elements | #PT707-HD3

Baldwin hydraulic elements offer superior protection for your engine-powered equipment.


Technical Specifications

  • Product Type: Hydraulic Element
  • Outside Diameter: 3 15/16 (100.0)
  • Inside Diameter: 1 19/32 (40.5)
  • Length: 9 9/32 (235.7)
  • Gasket: Optional Gasket: G417
  • Includes: Grommet: [2] Attached
  • Related To: PT757, PT757-10 (Double-Length Versions)
  • Micron Rating: 3 Nominal; 10 Absolute
  • Application: Gardner Denver, Ingersoll-Rand, Timbco Equipment
  • Compatible Competitor Part Number: Allis Chalmers 1900201; Caterpillar 9Y4522; Komatsu 145-491-1580; Schroeder K-Series
  • Brand: Baldwin

chemicalComposition California Residents: Prop-65 Warning

Safety Warning

Item Information

"Baldwin hydraulic filters offer superior protection for your engine-powered equipment. Improving system fluid cleanliness levels, providing better cold start performance and meeting service interval expectations are the primary objectives in the design of Baldwin hydraulic elements. Baldwin hydraulic elements utilize cellulose, synthetic and blended media to meet these performance specifications. A full range of filters is available to accommodate low, medium and high pressure applications.
