Baldwin - Diesel Fuel Filter Elements | #PF316_Baldwin


LOADING IMAGES
PF316

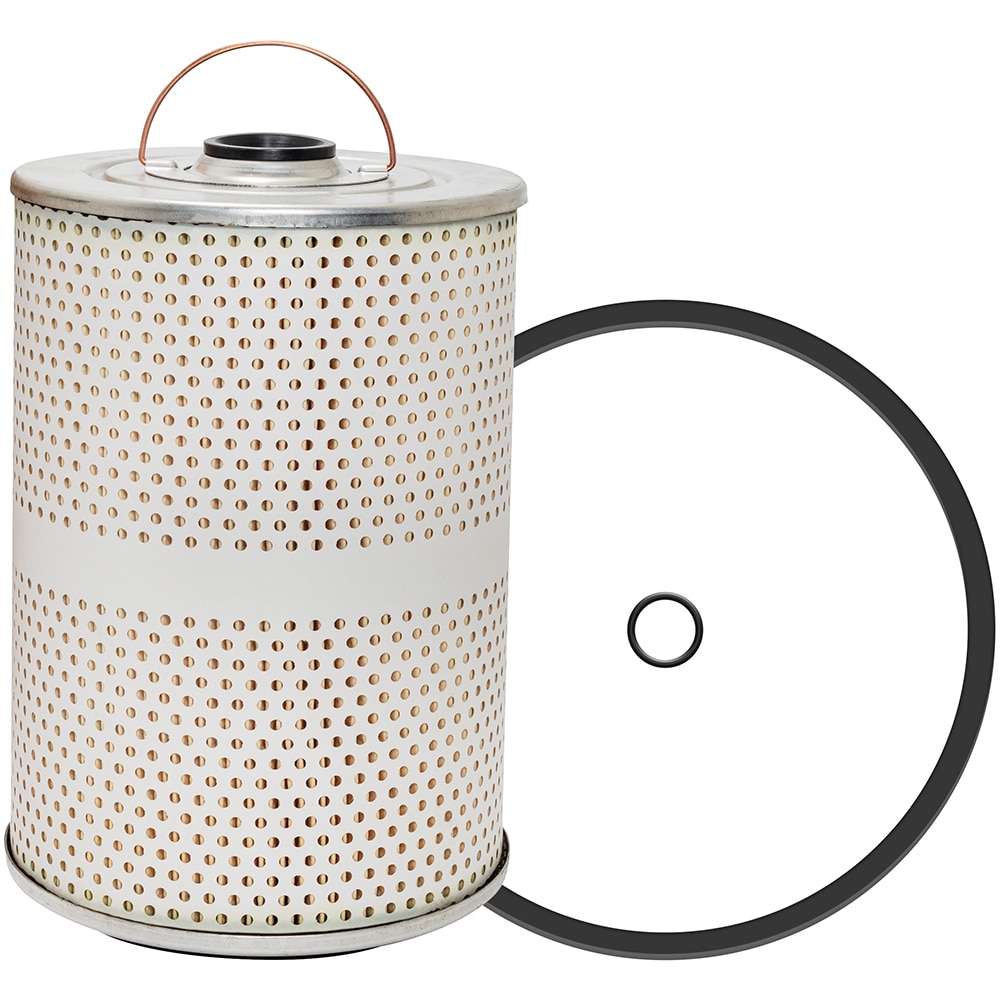

Baldwin - Diesel Fuel Filter Elements | #PF316

Modern fuel injection systems require fuel be free of both particulate and water contamination. Baldwin fuel filters keep fuel clean and engines running at maximum efficiency.


Technical Specifications

  • Product Type: Fuel/Water Separator Element with Bail Handle
  • Outside Diameter: 5 27/32 (148.4)
  • Inside Diameter: 31/32 (24.6)
  • Length: 8 3/4 (222.3)
  • Gasket: Attached Gasket: [1] Attached; Furnished Gasket: ES1036
  • O-ring: [1] Included
  • Includes: Grommet: [2] Attached
  • Micron Rating: 5 Nominal; 20 Absolute
  • Application: Caterpillar, Cummins, Detroit Diesel, M.A.N. Engines; Grove Cranes
  • Compatible Competitor Part Number: Caterpillar 8N0205; Cummins 256559
  • Brand: Baldwin
  • Division: Engine Mobile Aftermarket Division
  • Industry: Agriculture, Automotive, Commercial trucks and buses, Construction, Heavy-duty on-highway transportation, Industrial, Locomotive, Marine, Mining, Oil & Gas, Power Generation
  • Technology: Filtration
Safety Warning

Item Information

Modern fuel injection systems require fuel be free of both particulate and water contamination. Baldwin fuel filters keep fuel clean and engines running at maximum efficiency. New fuel systems operate at higher pressures (up to 60,000 psi) and tighter tolerances than ever before. Microscopic particles in the fuel, as small as 2-3 microns, can cause abrasive wear severely damaging the fuel injection system and other high pressure engine components. Baldwin Filters offers more than 1100 different fuel filters, fuel managers, coalescers, and fuel/water separators to protect your engine.
