H9087

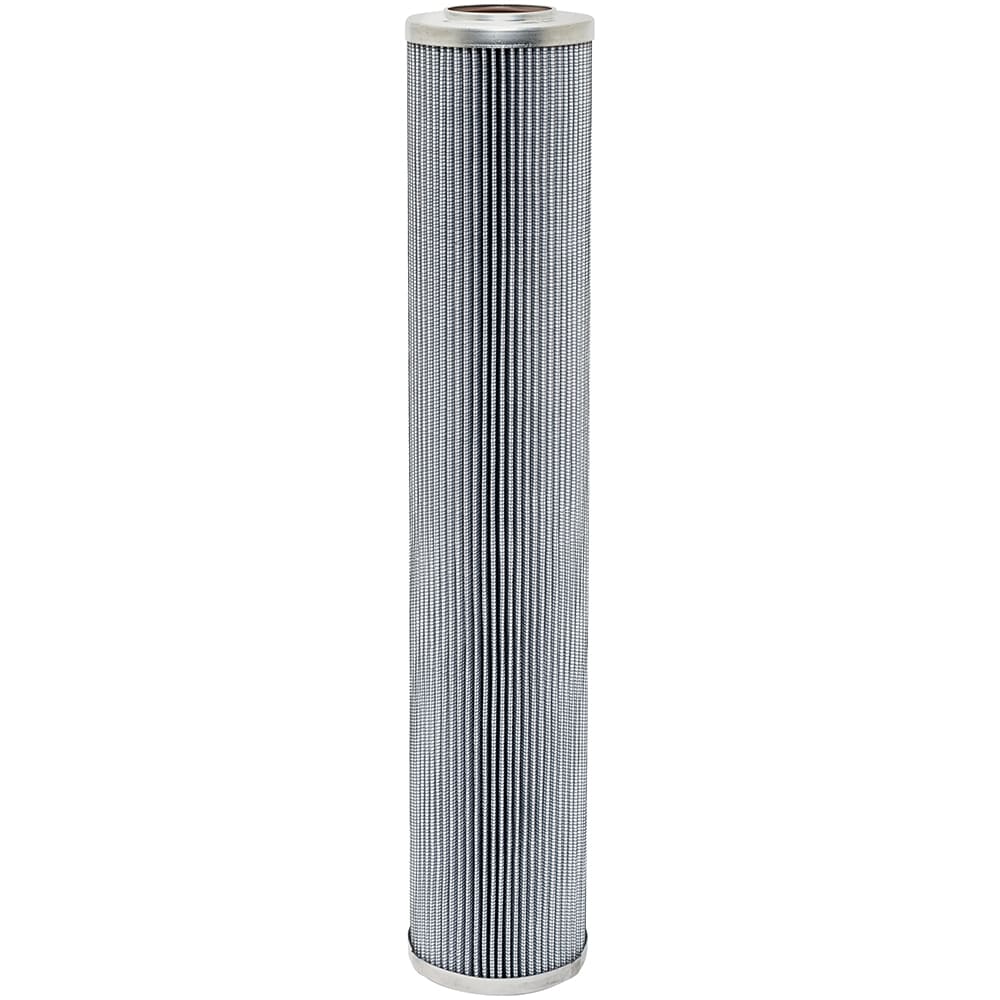

Baldwin - Hydraulic Filter Elements | #H9087

OBSOLETE. Availability Limited to Dealer Stock.


Technical Specifications

  • Product Type: Wire Mesh Supported Hydraulic Element
  • Contains: Viton gasket for high heat applications
  • Outside Diameter: 3 1/8 (79.4)
  • Inside Diameter: 1 11/16 (42.9) One End
  • Length: 16 7/8 (428.6)
  • O-ring: [1] Attached
  • Related To: H9086 (with Buna N Gasket)
  • Micron Rating: 5 Nominal; 20 Absolute
  • Compatible Competitor Part Number: Pall HC9600FKT16Z, HC9600FUT16Z
  • Brand: Baldwin
  • Industry: Marine
    Mining
    Oil and gas
    Construction
    Agriculture
    Compressor
  • Product Style: Hydraulic Filter
  • Technology: Filtration
Safety Warning

Item Information

"Baldwin hydraulic filters offer superior protection for your engine-powered equipment. Improving system fluid cleanliness levels, providing better cold start performance and meeting service interval expectations are the primary objectives in the design of Baldwin hydraulic elements. Baldwin hydraulic elements utilize cellulose, synthetic and blended media to meet these performance specifications. A full range of filters is available to accommodate low, medium and high pressure applications.

Read More Show Less

CAD Drawings + Files

No CAD files available
